HiCON CPU/OEM - 6-Axis Step/Direction Ethernet Motion Controller (pn 7752)

Overview

HiCON CPU/OEM (pn7752) is an Ethernet based 6-axis motion controller designed for companies that can build thier own cutomized breakout board. HiCON provides excellent integration with Mach3 and Mach4 CNC software proven by several end users since 2011. Utilizing the latest 32-bit Microchip technology, HiCON offers a comprehensive set of features for your motion control and CNC applications.

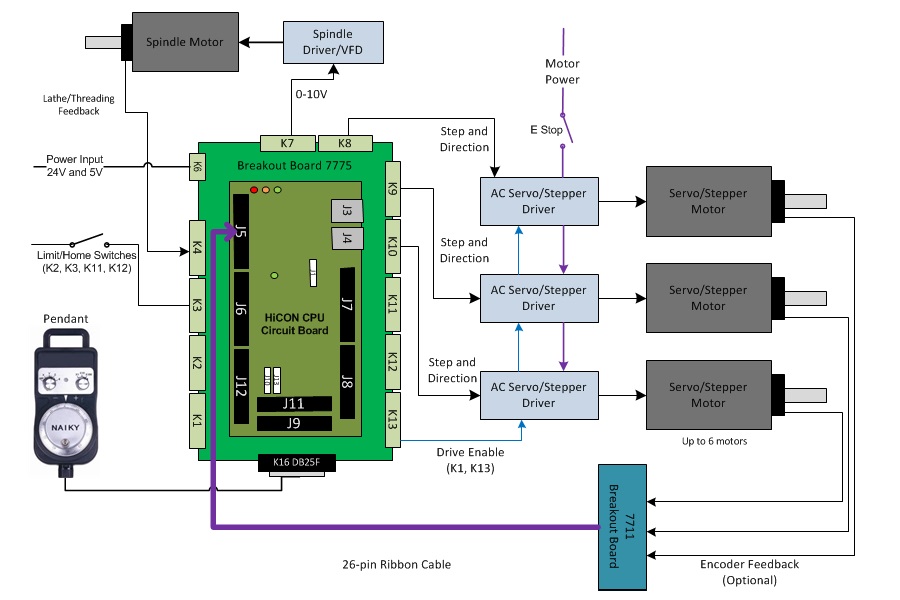

For starters, we provide a simple breakout baord 7775 in order for you to test some of the capabilities of the motion controller before investing resources on building your own comprehensive breakout board. If you don't plan to build your own breakout board and are interested in an all-in-one motion controller with integrated I/O breakout, please take a look at our HiCON Integra motion controller.

Controller Features

  • 6 Step and Direction Channels. Up to 2MHz Step Frequencies
  • 9 Differential Quadrature Encoder Inputs. 32-Bit Resolution
  • 4 Mhz Max Encoder frequency. Encoder resolution multiplied by 4 thru Hardware.
  • 2 Channel Analog Inputs, Range 0-3.3Volts, 12-bit Resolution
  • 72 Digital I/O (48 Inputs & 24 Outputs)
  • Ethernet 100Mb connectivity using TCP/IP interface.
  • Dedicated limit and estop sensor inputs for ultra-fast system disarm
  • Modes of Motion: Point-to-Point, Linear and Circular interpolation, Jogging, Electronic Gearing, Feedrate Override
  • .NET Managed Library for C#, C++, and VB.NET Software Developers.
  • Standalone Operation by programming the unit with BASIC programming language for high-speed I/O processing.
  • High-performance implementation of MPG for stepper motors.
  • Quick Custom hardware and firmware feature addition available

The HiCON controller can be used in a variety of applications, e.g.,

  • Data Aquisition Systems
  • PC Based or Standalone Motion and I/O Controller
  • Storage and Retrieval Systems
  • Milling / Lathe CNC Machines

Mach4 CNC Software

Mach4 is an excellent PC-based software solution for CNC. When paired with a HiCON motion controller, it creates a state of the art CNC solution for machine-shops as well as industrial applications. Mach4 plus HiCON greatly simplifies retrofitting and increases operation reliability. For the latest release of the Mach4 HiCON Plugin, please refer to the download section below.

Price List

Motion Controller

7752 $995
HiCON OEM CPU Board Add to order

Breakout Boards

7775 $350
HiCON Breakout Board MB1 Add to order
7535P $95
16in/8Out OptoIsolated PNP Sourcing Type I/O Board Add to order
7535N $95
16in/8Out OptoIsolated NPN Sink Type I/O Board Add to order

Software

MACH4-INDUSTRIAL $1295
Mach4-Industrial Software License Add to order
Mach4-Hobby $200
Mach4-Hobby Software License Add to order
Mach3 $175
Mach3 Software License Add to order
MOTION_API $495
Motion and I/O Control API from Windows PC Add to order
HiCON-MACRO $475
HiCON C Programming Feature Add to order
HiCON-EXTIO $200
HiCON Extended I/O Feature (Includes Mach4 Sync Outputs M67, M62) Purchase of 7535 I/O board includes this feature! Add to order
HiCON-ADC $200
HiCON Analog Input Feature Activation Add to order

Accessories

MPG06ED $295
MPG06 Unit w/ DB15M + EStop Button + Differential Encoder Add to order
