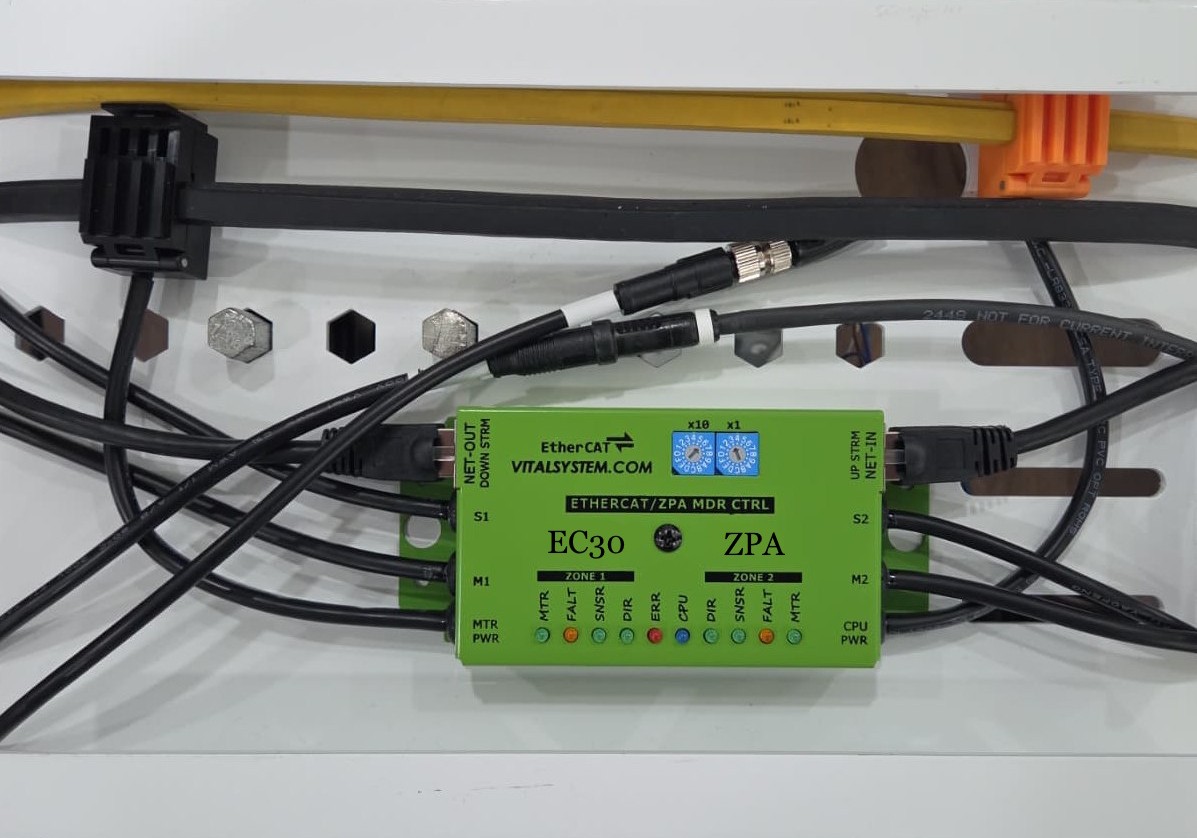

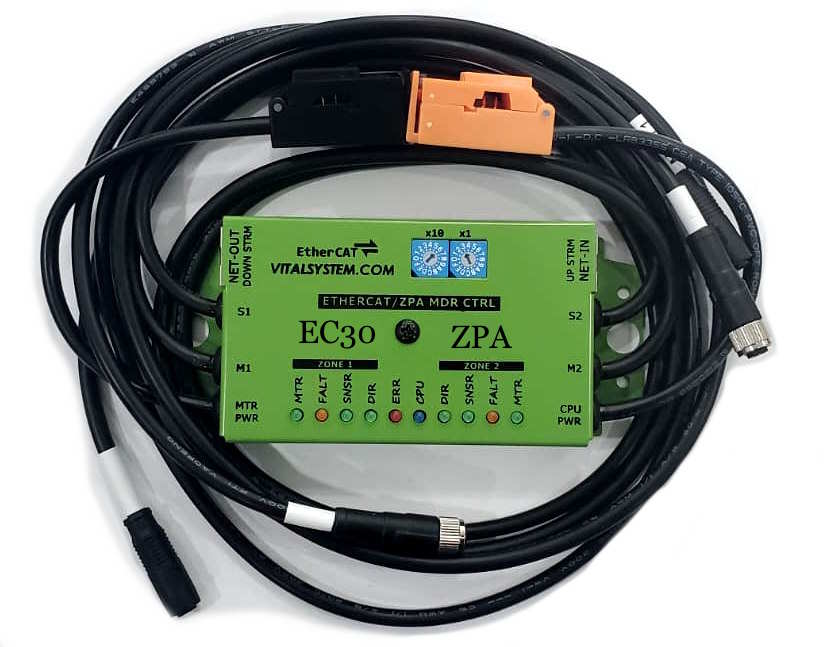

EC30 - EtherCAT MDR Control Card with ZPA Functionality

Overview

  • High Current Outputs: Dual-zone MDR control, each motor output up to 5A continuous current at 24volts.
  • EtherCAT Connectivity: Fast 1 kHz scan time with redundancy support.
  • Resilient Design: Protection against high voltage transients, overcurrent, and short-circuit safeguards.
  • Plug-and-Play ZPA Logic: Transport conveyor operation (ZPA) without any programming or PLC/Gateway
  • Rich Diagnostics: Monitor motor current, peak current, voltage, and cycle counts over EtherCAT.
  • Free Programming Software: VSLogix for transport, merge, cross-transfer, and custom conveyor logic.
  • Durable Design: Compact metallic case with resettable fuse, dust/static protection, and ease of installation.
  • M8/M12 & Vampire plugs Plugs: Quick connection for Photoeyes, MDR Motors, and flat power cables.
  • Rotary switches for optional mode and Station ID selection.
  • Unlimited Tech Support: Unlimited support from the EC30 developer team to help you get started and complete programming and commissioning of the conveyor system.
  • Easy Connection For Network Daisy Chain Cards and Gateway: RJ45 Ethernet cables for easy connection for network daisy chain cards and Gateway.
  • Compatible Rollers Include:
    • Interroll EC310
    • Interroll EC5000 24V (Upto 75W)
    • Rulmeca BL3
    • Itoh Denki MDRs
    • And more

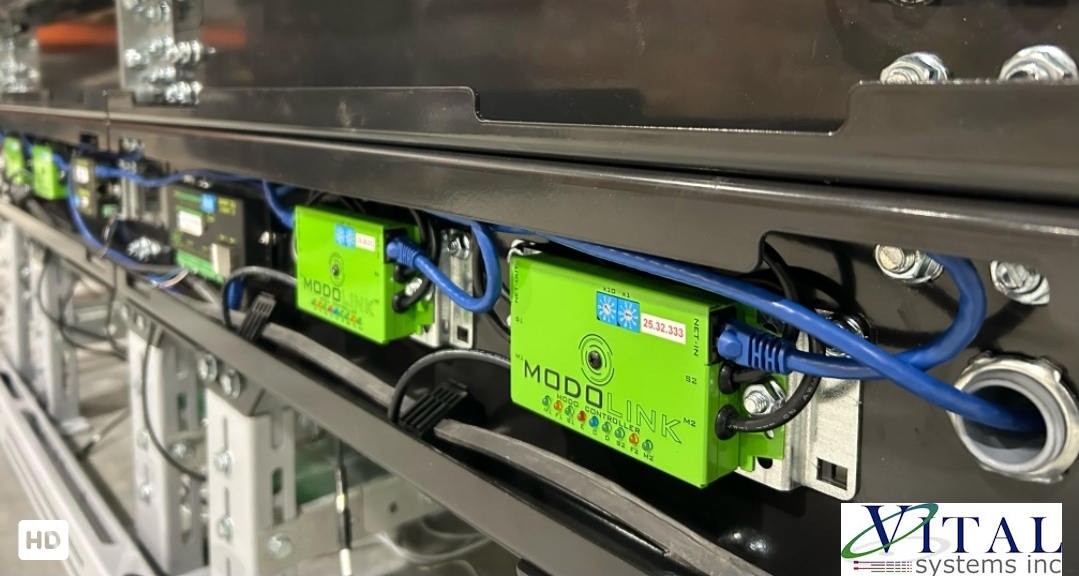

    Rebranding For conveyor companies and integrators - make a bold impression.

Intellecat Gateway/PLC

Control the EC30 cards using our Intellecat PLC, Rockwell PLC, or use the built-in ZPA transport mode.

Intellecat is our Gateway/PLC based on ethercat technology.

  • Gateway Mode: It acts as a bridge between the EC30 and Rockwell PLCs as well as PC based software VSLogix
  • PLC Mode: Intellecat is a complete PLC. Download your own program and run the system without any external PLC or PC support.
  • Multi-Protocol Support: Supports EtherNet/IP, MODBUS, EtherCAT protocols.
  • High Speed EtherCAT Performance: EtherCAT provides high-speed, high data bandwidth, and low-latency data exchange for best I/O control performance.
  • Fast Polling Rate: Supports Scan rates of multiple conveyor segments within 1-5 ms.

Intellecat Gateway/PLC

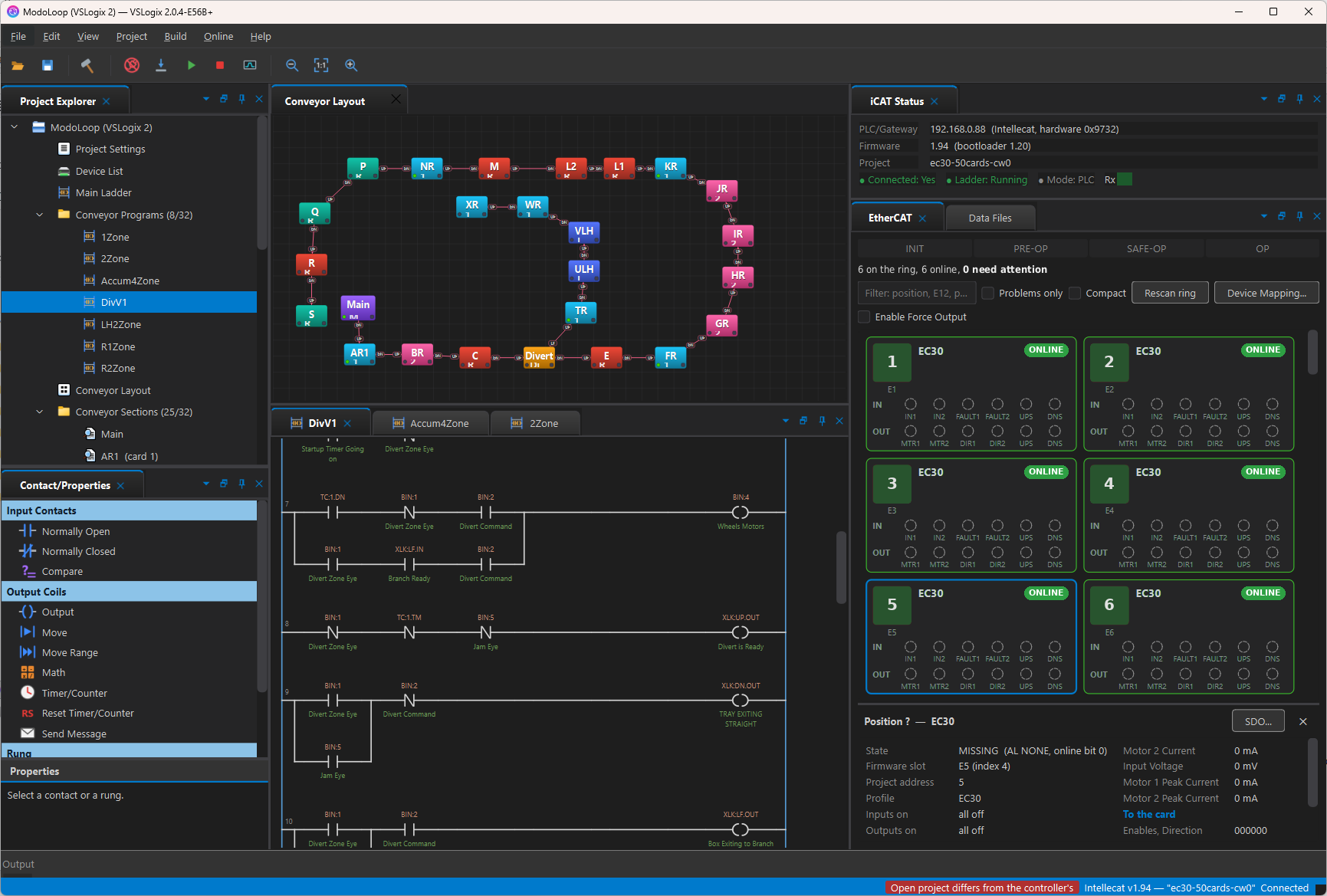

VSLogix Programming Software

  • Full Programming Capability: Intellecat Gateway/PLC supports complete programming using the free VSLogix software.
  • Conveyor Types Programming: Integrators can program conveyor types such as cross‑transfer, merge, and accumulation using ladder‑logic templates.
  • Code Reusability: The same logic templates can be reused across similar conveyor sections, speeding up development
  • Faster Integration and Commissioning: Creating reusable logic templates reduces integration time and accelerates commissioning of conveyor systems.
Download the free VSLogix software to program your conveyor system and get access to sample logic templates for different conveyor types.

A video tutorial is available to guide users through programming with VSLogix software.

Documentation

EC30 User Manual

EC30 EtherCAT Objects

Downloads

EC30 Description (ESI) Files

VSLogix Software

Sample Conveyor Logic

Price List

EC30 $160
EC30 MDR Control Card with M8 plugs, Vampire Power Plugs, RJ45 Add to order
9732-8 $450
IntellECAT Gateway/PLC (Control up to 8 Gx20 Control Cards) Add to order
9732-16 $650
IntellECAT Gateway/PLC (Control up to 16 Gx20 Control Cards) Add to order
9732-32 $850
IntellECAT Gateway/PLC (Control up to 32 Gx20 Control Cards) Add to order
9732-64 $1250
IntellECAT Gateway/PLC (Control up to 64 Gx20 Control Cards) Add to order
