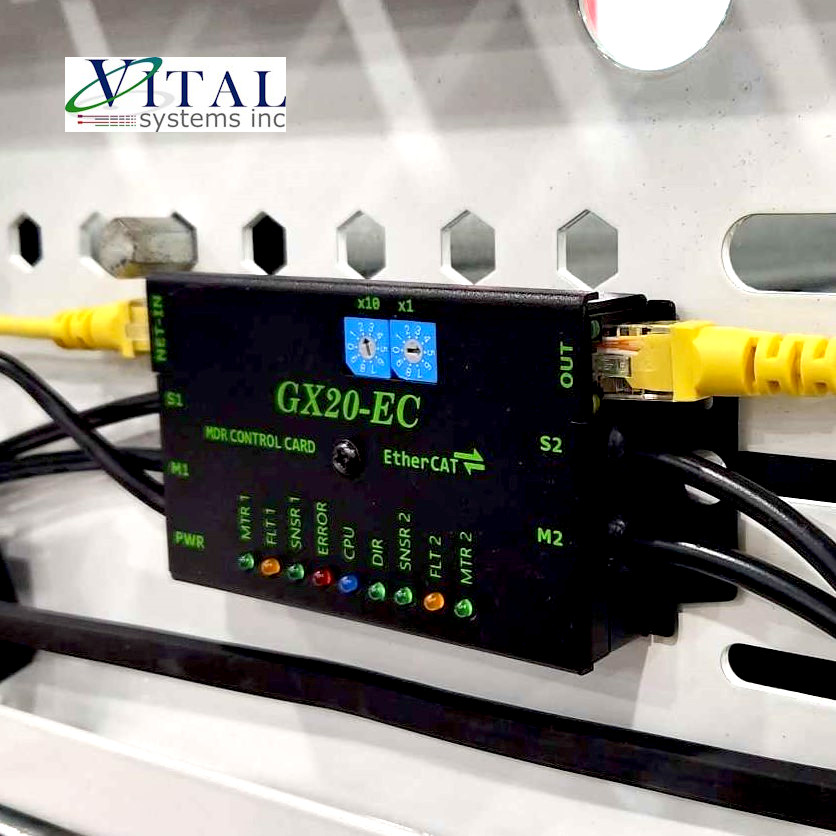

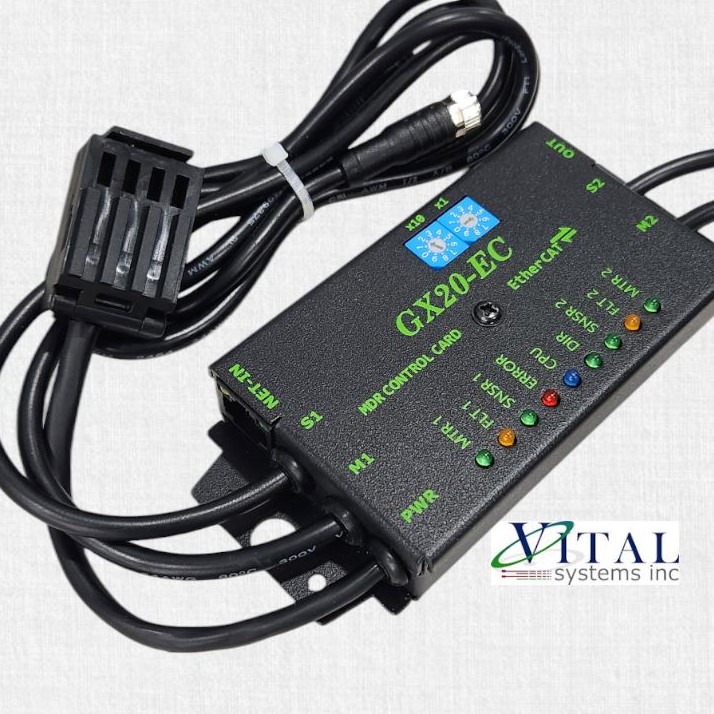

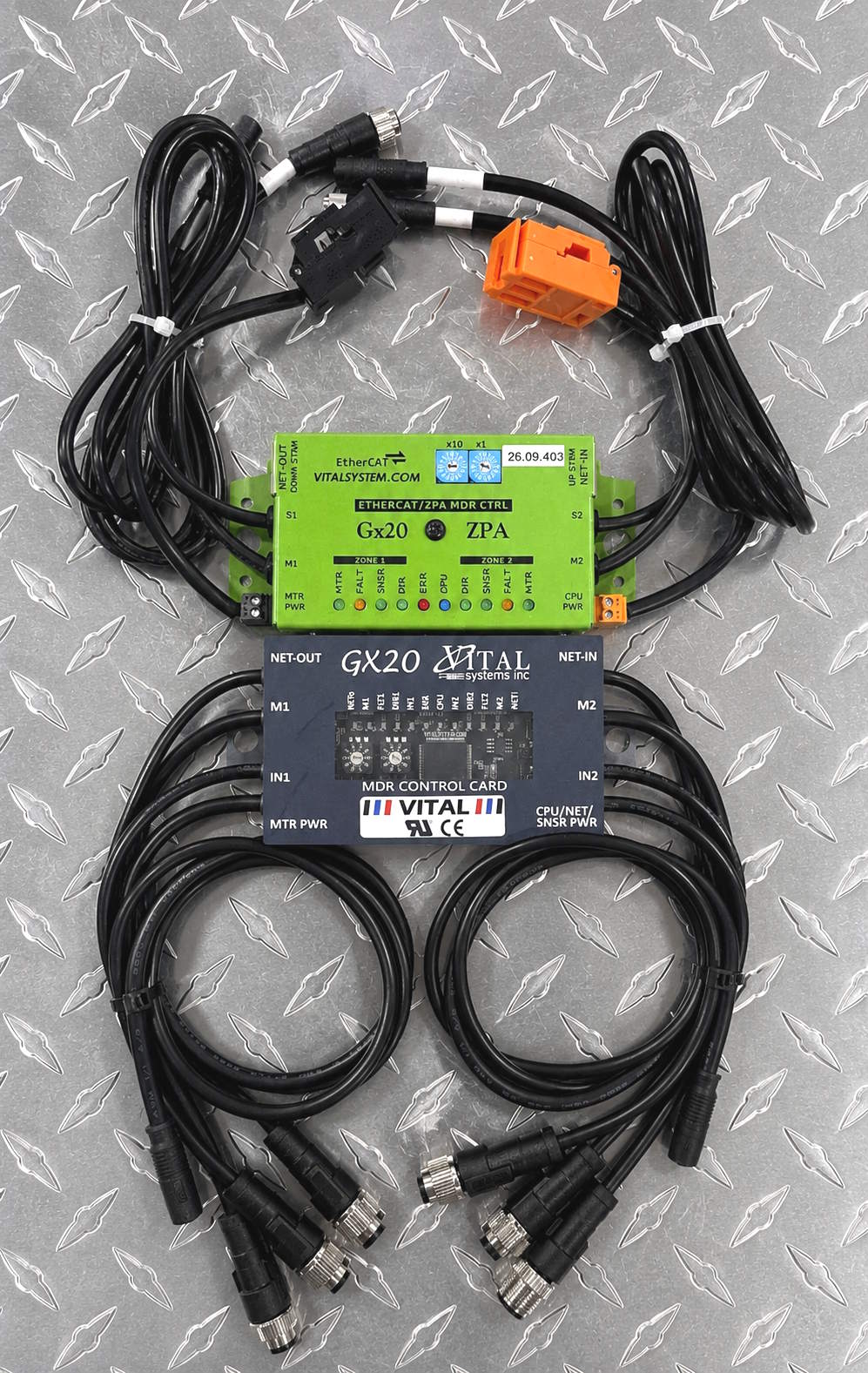

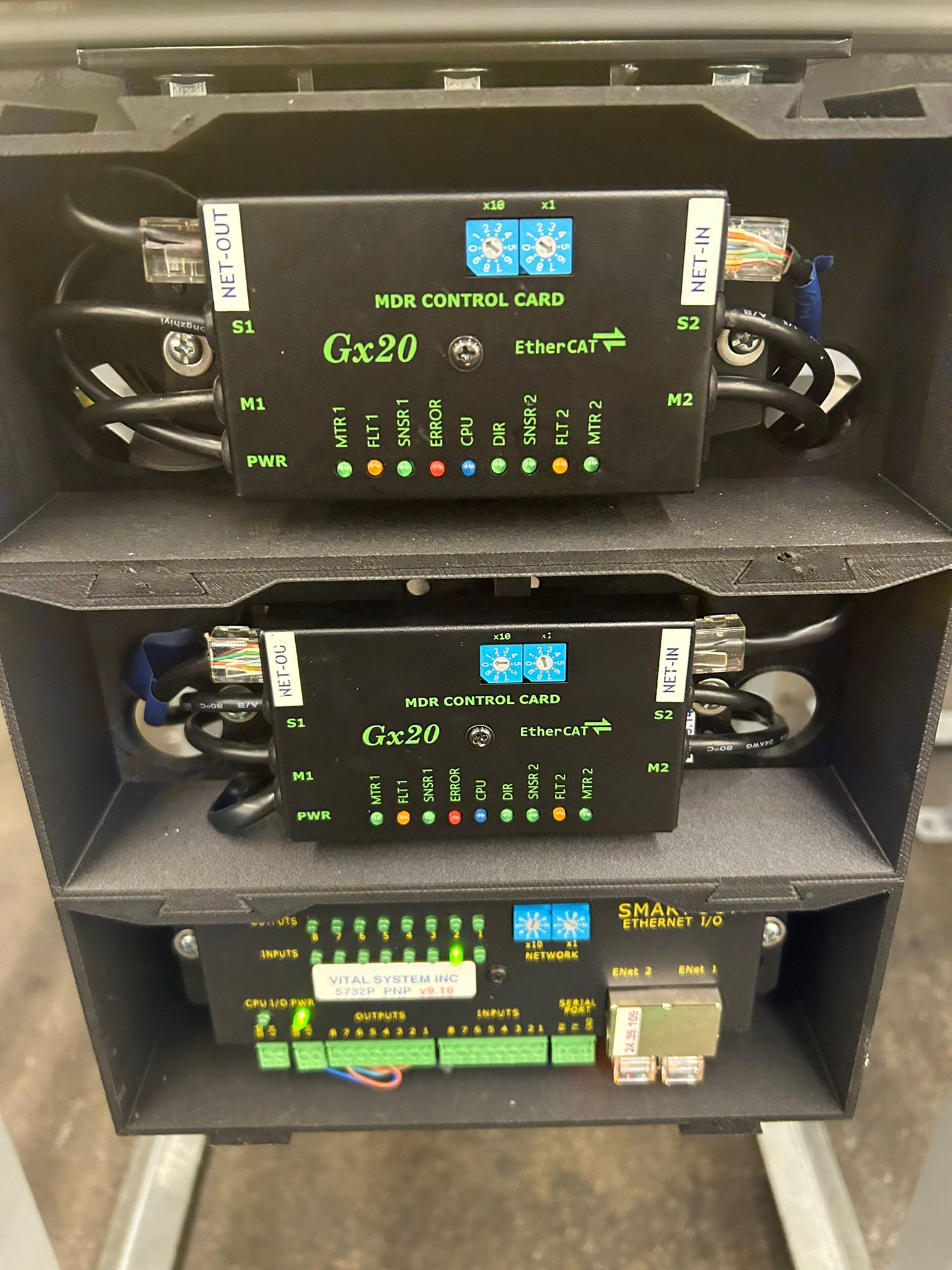

GX20 MDR Control Card

Overview

Control MDR Rollers from your PLC or use the built-in ZPA Logic.


  • High Current Outputs: Dual-zone MDR control, each motor output up to 3A continuous current at 24volts.
  • EtherCAT Connectivity: Fast 1 kHz scan time with redundancy support.
  • Resilient Design: Protection against reverse polarity, high voltage transients, overcurrent, and short-circuit safeguards.
  • Plug-and-Play ZPA Logic: Transport conveyor operation without programming or PLC/Gateway (Model Gx20.ZPA).
  • Rich Diagnostics: Monitor motor current, peak current, voltage, and cycle counts over EtherCAT.
  • Free Programming Software: VSLogix for transport, merge, cross-transfer, and custom conveyor logic.

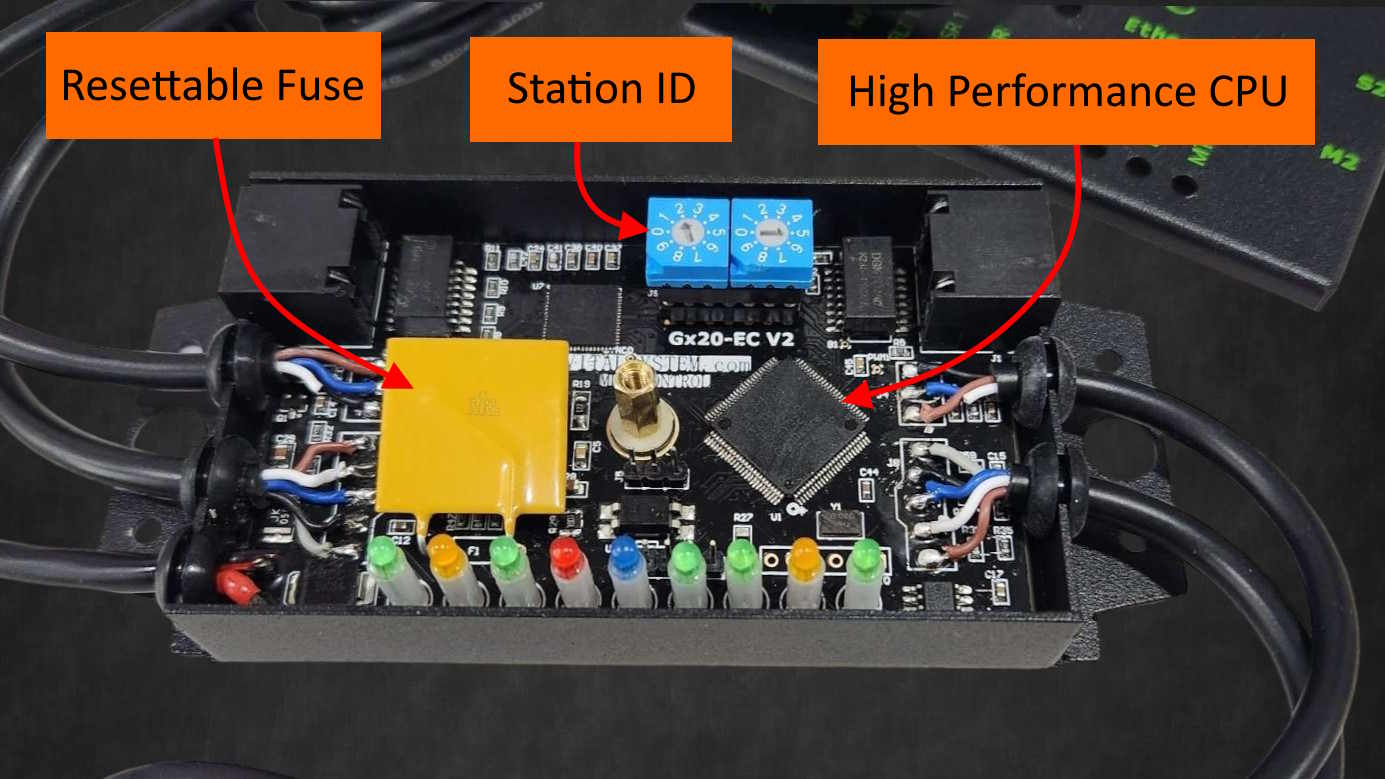

  • Durable Design: Compact metallic case with resettable fuse, dust/static protection, and ease of installation.
  • M8/M12 Plugs: Quick connection for Photoeyes and MDR Motors (e.g., Interroll, Itoh, ACG UniDrive, etc.).

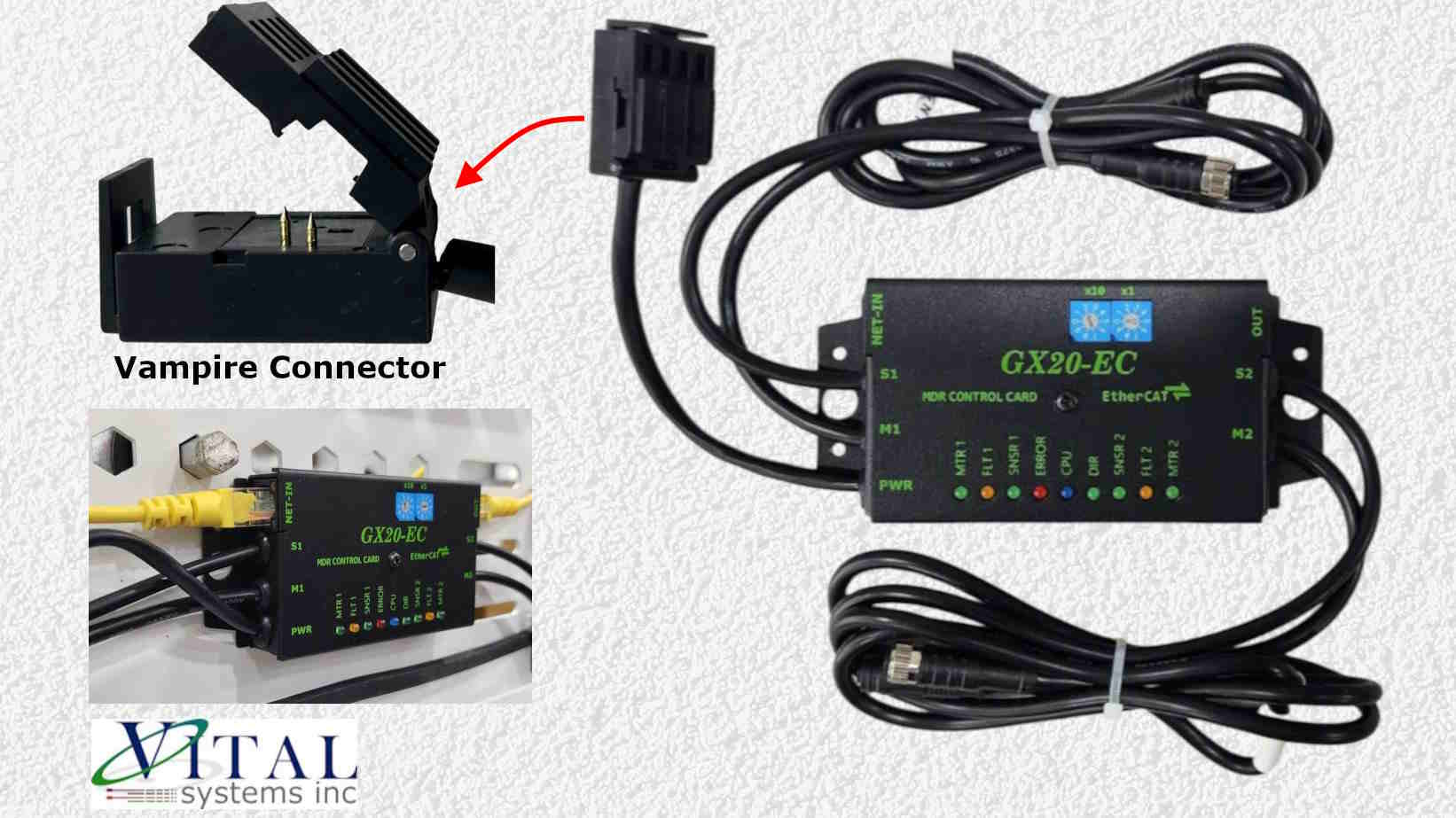

  • Vampire plugs for quick connection to power cables. (Model Gx20v3)

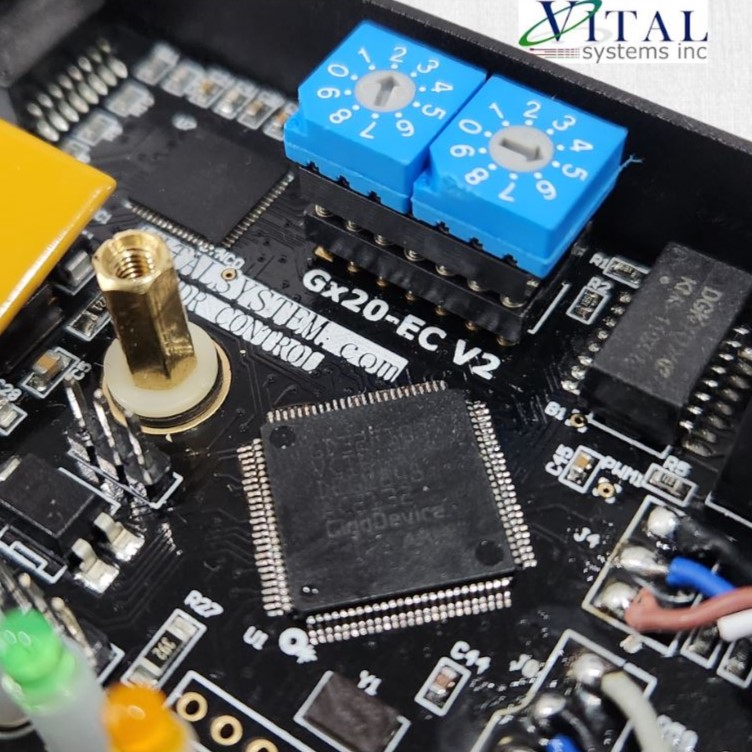

  • Rotary switches for mode and Station ID selection.
  • Certified Reliability: UL and CE certified for trusted global deployment (Model Gx20v3).
  • Unlimited Tech Support: Unlimited support from Gx20 developers’ team to help you get started and complete programming and commissioning of the conveyor system.

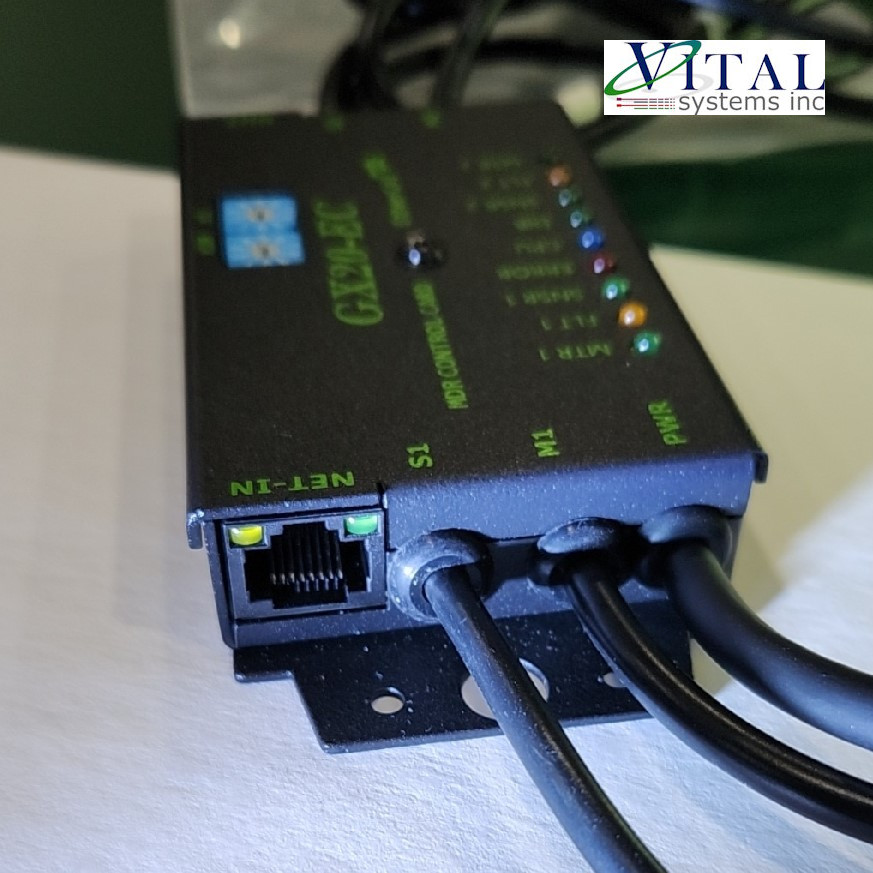

  • Easy Connection For Network Daisy Chain Cards and Gateway: Using RJ45 (Gx20.ZPA) as well as M12 (Gx20v3) Ethernet cables for easy connection for network daisy chain cards and Gateway.
  • Compatible Rollers Include:
    • Interroll EC310
    • Interroll EC5000 24V (Upto 75W)
    • Rulmeca BL3
    • Itoh Denki MDRs
    • And more

IntellECAT Gateway/PLC

IntellECAT is our Gateway/PLC based on ethercat technology.

  • Bridge Functionality: It acts as a bridge between GX20 and Rockwell PLCs as well as PC based software VSLogix
  • Standalone PLC Functionality: NO PLC or PC is required to operate the conveyor system, Intellecat has its own PLC engine if you choose.
  • Multi-Protocol Support: Supports EtherNet/IP, MODBUS, EtherCAT protocols.
  • High Speed EtherCAT Performance: EtherCAT provides high-speed, high data bandwidth, and low-latency data exchange for best I/O control performance.
  • Fast Polling Rate: Supports Scan rates of multiple conveyor segments within 1-5 ms.

IntellECAT Gateway/PLC

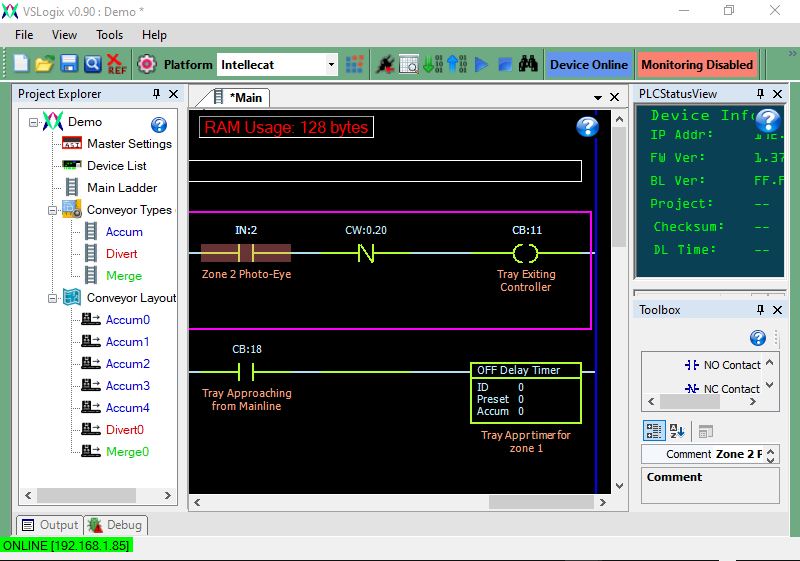

VSLogix Programming Software

  • Full Programming Capability: IntellECAT Gateway/PLC supports complete programming using the free VSLogix software.
  • Conveyor Types Programming: Integrators can program conveyor types such as cross‑transfer, merge, and accumulation using ladder‑logic templates.
  • Code Reusability: The same logic templates can be reused across similar conveyor sections, speeding up development
  • Faster Integration and Commissioning: Creating reusable logic templates reduces integration time and accelerates commissioning of conveyor systems.
Download the free VSLogix software to program your conveyor system and get access to sample logic templates for different conveyor types.

A video tutorial is available to guide users through programming with VSLogix software.

Documentation

GX20.ZPA User Manual

GX20.v3 User Manual

GX20.v2 User Manual

GXZPA EtherCAT Objects

GX20.v3 EtherCAT Objects

GX20.v2 EtherCAT Objects

Downloads

GX20 Description (ESI) Files

VSLogix Software

Sample Conveyor Logic

Price List

GX20.ZPA $120

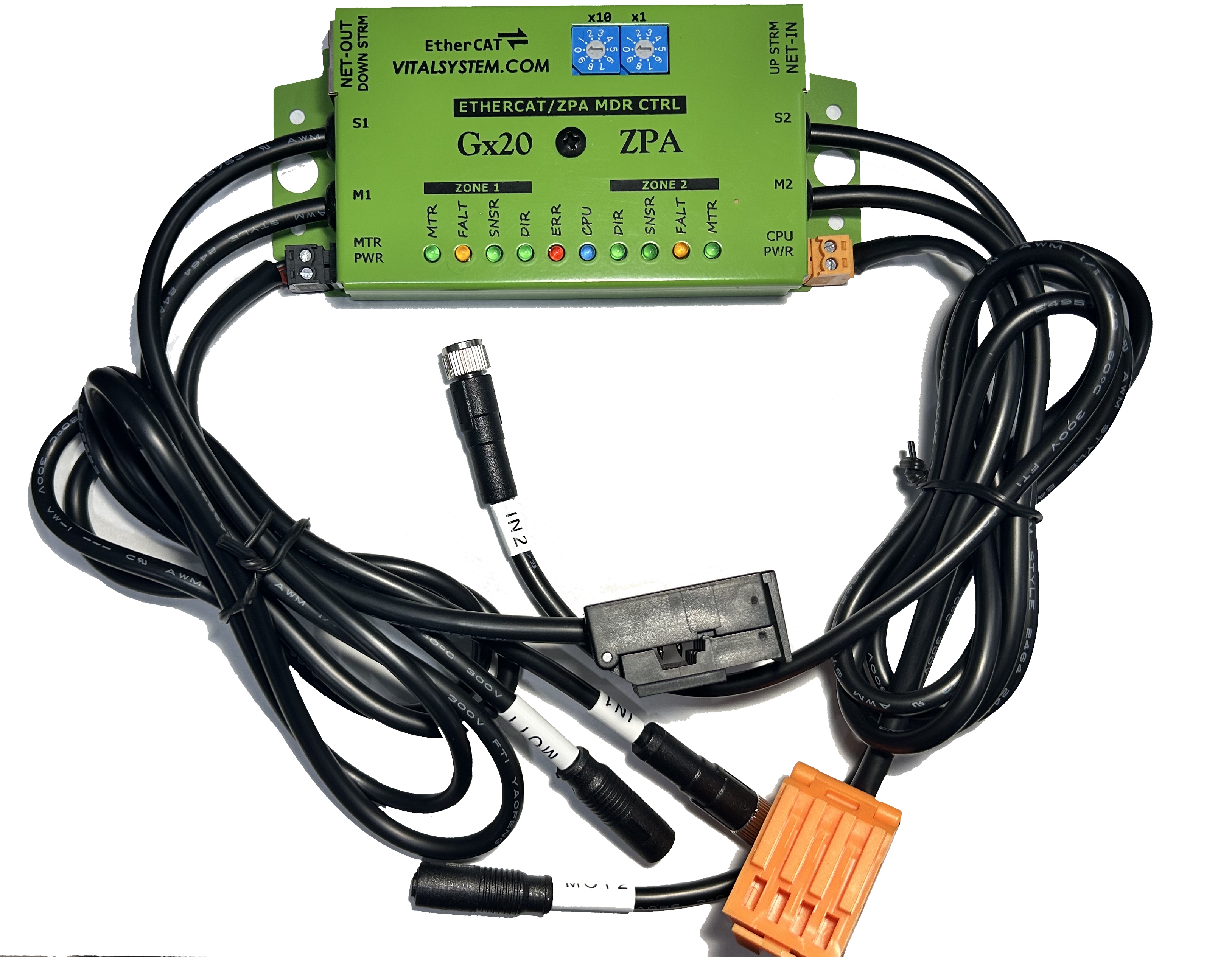

GX20 ZPA MDR Control Card with M8 plugs, Vampire Flat Cable Power Plugs, RJ45 Add to order
GX20.v3 $150
GX20 MDR Control Card with M12 plugs, UL CE & IP67 Rated Add to order
9732-8 $450
IntellECAT Gateway/PLC (Control up to 8 Gx20 Control Cards) Add to order
9732-16 $650
IntellECAT Gateway/PLC (Control up to 16 Gx20 Control Cards) Add to order
9732-32 $850
IntellECAT Gateway/PLC (Control up to 32 Gx20 Control Cards) Add to order
9732-64 $1050
IntellECAT Gateway/PLC (Control up to 64 Gx20 Control Cards) Add to order
