CNC Accessories
Manual Pulse Generator (pn MPG06)
- General purpose DB15M or DB25M port
- Anti-jamming MPG wheel
- 3m spiral handwheel cable.
- High resolution 100 P/R, accurate pulse output.
- Handwheel holding magnetic function.
- Single-ended or differential encoder output option
| MPG06ED | $295 |
| MPG06 Unit w/ DB15M + EStop Button + Differential Encoder | Add to order |
24V Power Supply 50 Watts
| Specifications | |
| Output Power | 50W |
| Input Voltage | 88 VAC to 264 VAC |
| Output | 24VDC, 2.2Amp |
| Dimensions | 99 x 82 x 30 mm |
| Data Sheet |
| PW50V24 | $40 |
| Power Supply 24V 2.2A 50W | Add to order |

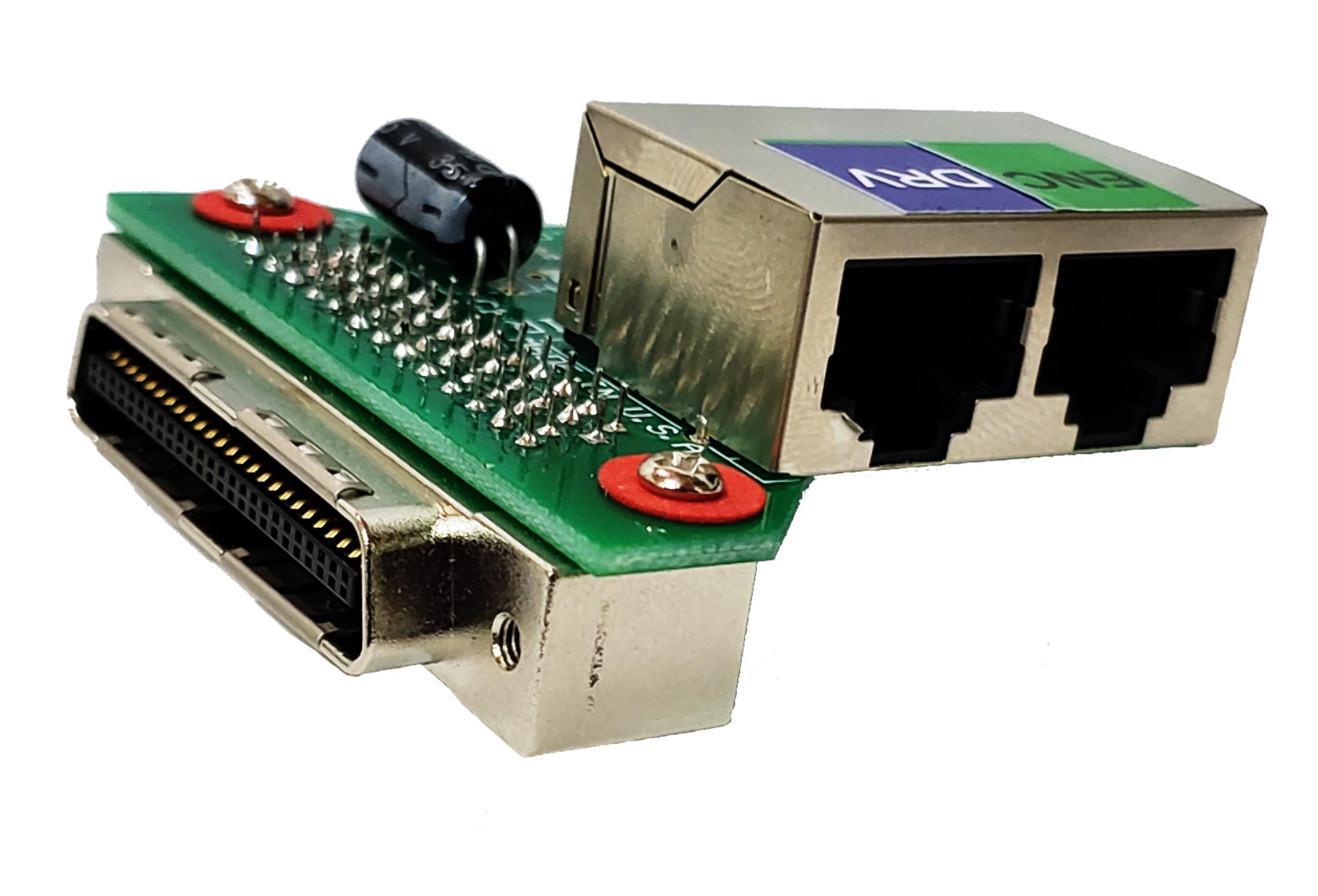

YASKAWA Drive Interface Board
The Drive Interface Board provides a simple plug and play mechanism for YASKAWA Servo Drives and HiCON Integra when used in tandem with the pn7737 Differential Encoder Board.
| YSK-DIB | $95 |
| Drive Interface Board for YASKAWA | Add to order |
Drive Interface Board (EPx-DIB)
The Drive Interface Board (EPx-DIB) provides a simple plug and play mechanism for Maxsine AC Servo Drives and HiCON Integra when used in tandem with the pn7737 Differential Encoder Board.
| EPx-DIB | $49 |
| Drive Interface Board | Add to order |
Plasma Tip Voltage Adapter Board
The Plasma Tip Voltage Adapter Board (77ISO) provides a simple plug and play solution for our motion controllers to read torch tip voltage. This is used for the ArcPRO Plasma Package.
The 77ISO is supported by:
- HiCON Integra
- EC01 EtherCAT Controller
- DSPMC Motion Controller
(Note that the HiCON Mini 77E4AN already has this functionality built-in and does not require this board)
| 77ISO | $195 |
| Plasma Tip Voltage Adapter Board | Add to order |
