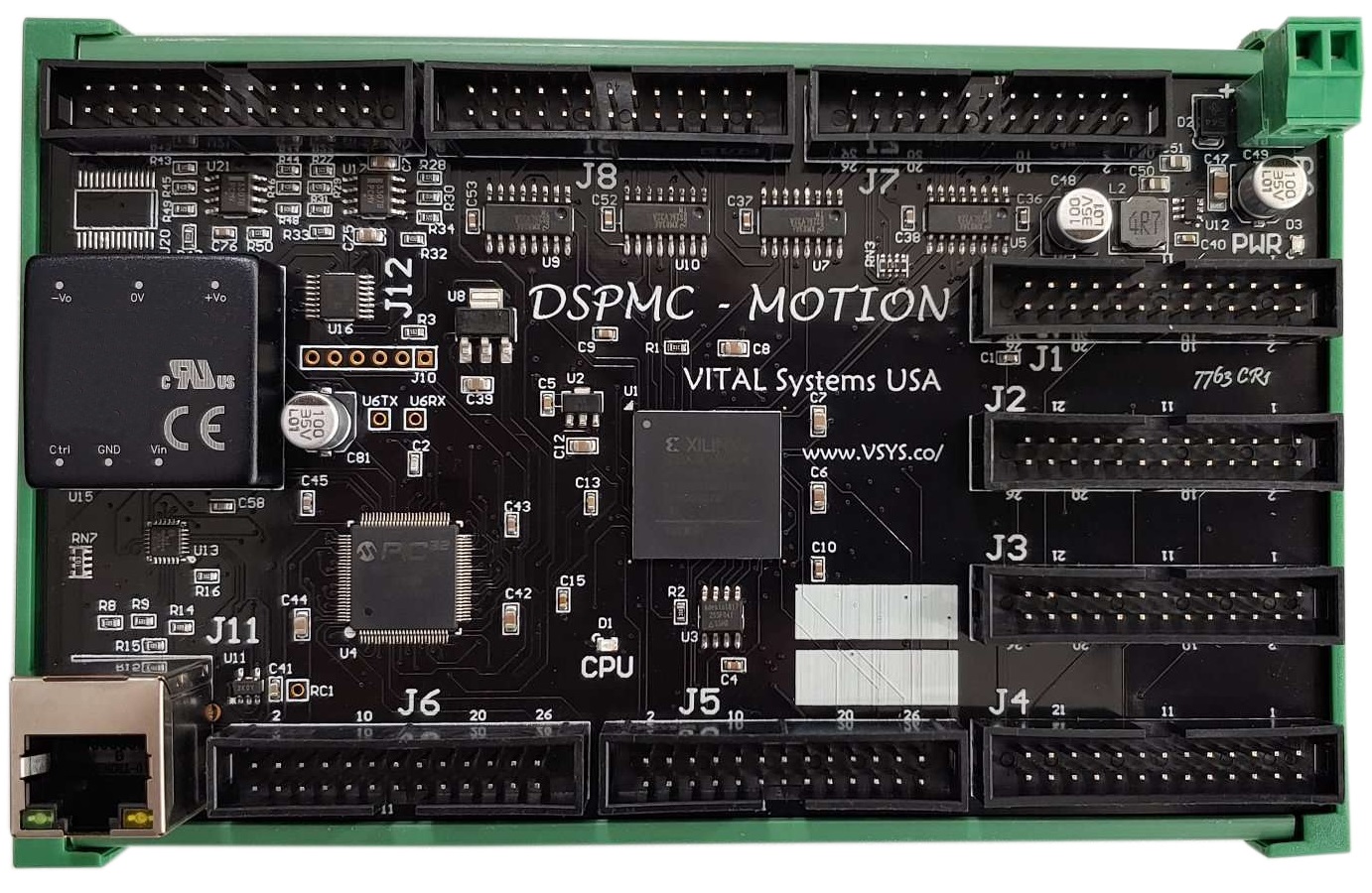

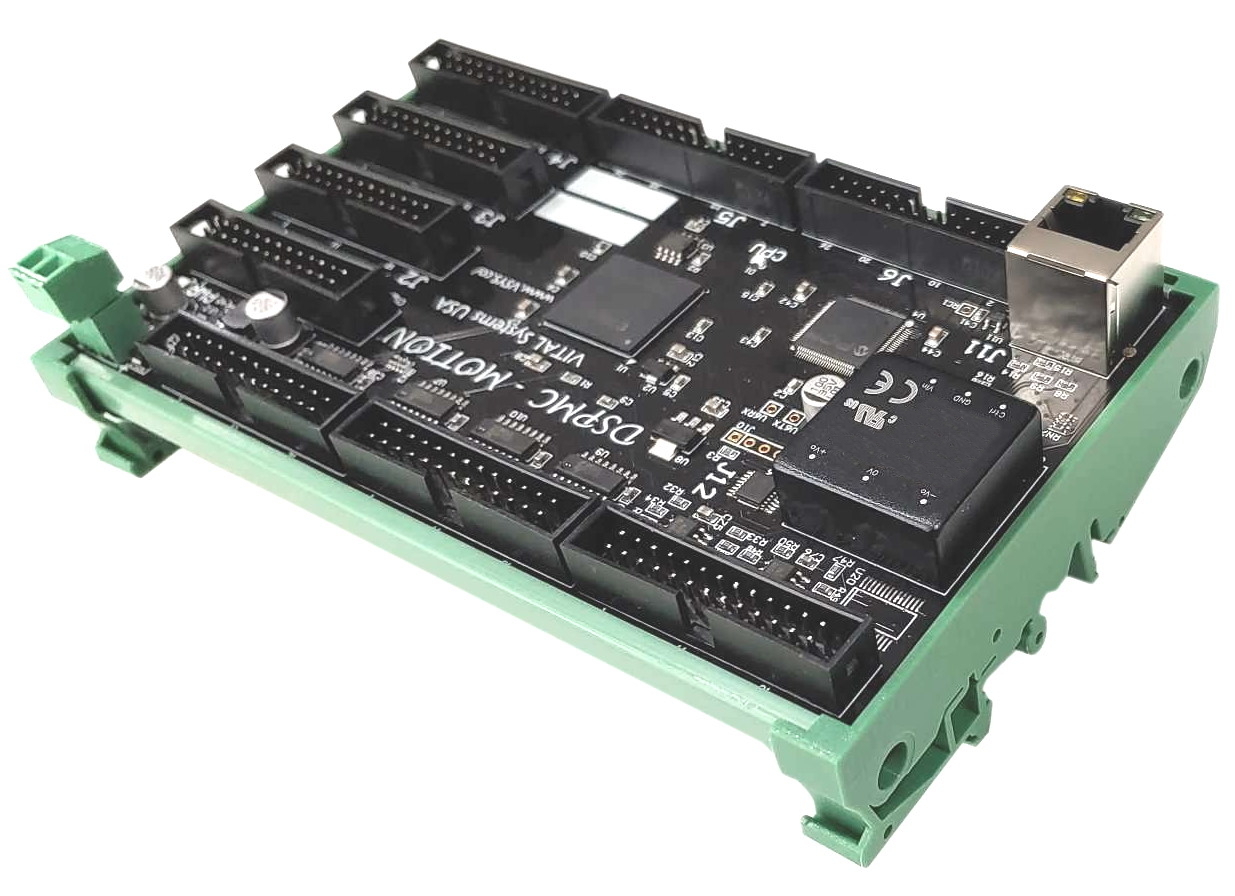

DSPMC - 8-Axis Ethernet Motion Controller
.jpg)
Overview
DSPMC 7763 is an Ethernet based motion controller that controls up to 8 Analog ±10V Servo Drives and 8 Step and Direction Digital Drives. The DSPMC provides excellent integration with Mach4 CNC software proven by several hundred end users since 2008. Utilizing the latest Software and Silicon technology, the DSPMC offers a comprehensive set of features for your CNC retrofitting and Motion Control applications. Future expansion will allow controlling Ethercat servo drives and I/O devices via 7729 adapter board.
Controller Features
- 8 Channels Servo Drive Analog Outputs, Range ±10V, 16-Bit (7763S and 7763M)
- 8 Step and Direction Channels. Up to 2MHz Step Frequencies
- 6 Differential, 8 Single-Ended Quadrature Encoder Inputs
- 8 Channels Analog Inputs, Range ±10Volts, 16-bit (7763M Only)
- 96 Digital I/O (64 Inputs & 32 Outputs)
- 2Mhz Encoder frequency.
- 1KHz Closed-Loop Servo Control for each axis
- Wide input power range 10-40VDC
- Ethernet connectivity with Mach4
- Advanced PID compensation with velocity feedforward, integration limits, and low-pass filter.
- Dedicated limit and estop sensor inputs for ultra-fast system disarm
- Modes of Motion: Point-to-Point, Linear and Circular interpolation, Jogging, Electronic Gearing, Feedrate Override
- Standalone Operation by C program (For highly advanced users only))
- SDK Libraries available for Software Developers (Not required for Mach4).
- Quick Custom hardware and firmware feature addition available
CNC Features
- MPG Control
- Probing.
- Lathe Threading.
- Rigid Tapping
- Manual Mode
- Closed-loop operation automatically compensates for backlash.
- Homing Using Home Sensor and/or Index Pulse.
- Rotary Axis Homing with Index pulse.
- Use One Home Sensor Input for all axis, or separate Home Sensors for each axis.
- Option to use Limit switches as homing sensors.
- Feedrate Override above 100%.
- Instant FeedHold
- Slave Axis Support.
- PID Tuning Graph.
- Spindle Orientation and Tool Change Support
- Multiple Spindle control type: 0-10v, ±10V, Servo Spindle, GCode Spindle (Allows easy integration of Tool Changer).
- High Speed 3D machining support.
- Mach4 scripting support for custom motion, I/O logic, and Tool-Changer programming.
| Model | Step/Direction | Analog Outputs | Analog Inputs |
|---|---|---|---|
| 7763D | 8 Channels | None | None |
| 7763S | 8 Channels | 8 Analog Outputs | None |
| 7763M | 8 Channels | 8 Analog Outputs | 8 Analog Inputs |
Most CNC applications will only require the base unit DSPMC 7763S to control analog and digital drives. However, the 7763M version has eight analog inputs channels for reading analog signals. The 7763D can save you some money if you do not require any analog input or output signal.
Demo
Customer Testimonials
Mach4 CNC Controller
Mach4 is the latest PC-based software solutions for CNC applications. When paired with the DSPMC controller, creates a state of the art CNC solution for machine-shop and industrial application.
The DSPMC controller supports Mach4 Software via the plugin provided on this page. For the official production release, please refer to the "DSPMC Support Files" section below.
Mach Software and DSPMC setup:
- Copy the HiCON plugin for Mach4 to the plugins folder in the Mach installation directory ("C:\Mach4\plugins").
- Perform all necessary configurations via the user friendly config screens.
- For more information, consult the Mach4 Integration manual available for download below.
Mach4 HiCON System Config
Mach4 HiCON Axis Config
Mach4 HiCON Status
Media
HiCON Basic Setup Video

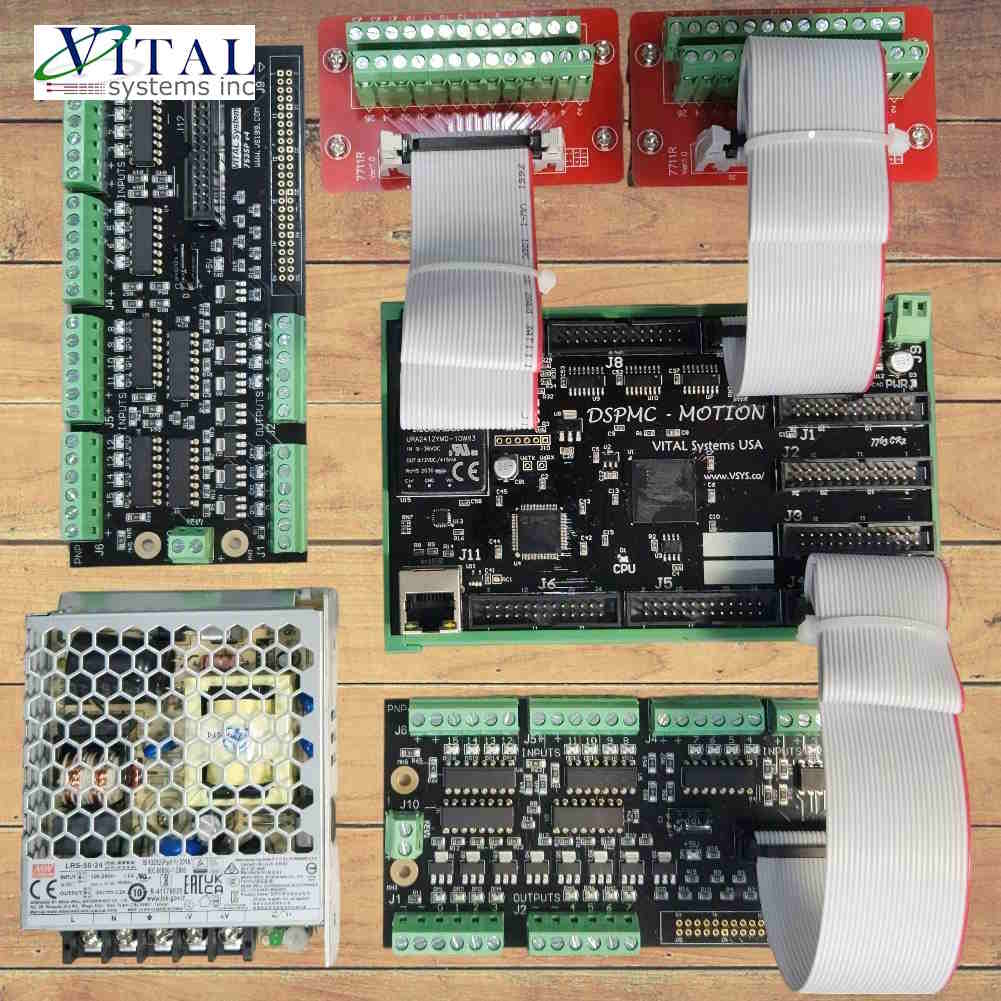

Optional Components for DSPMC System
Advanced and production applications can also benefit from these add-ons:
DSPMC-MACRO[1]: This software feature allows the user to write custom programs (In C language)which can be downloaded to the controller for fast execution. Advantages of DSPMC-Macro Include:
- Real-time program execution
- Ultra-fast I/O manipulation
- Extends Mach4 Functionality
- Standalone Operation (No PC Control)
DSPMC-SNT[1]: This software feature is a specialized tool for EDM Machines. It allows the DSPMC to read an analog input at an ultra-fast scan rate and activate a digital output at the moment the voltage reading goes above or below a configured threshold. This feature is available only on the DSPMC 7763M version as analog inputs are required.
7737 Board: The pn7737 Differential Step/Direction and Encoder Board allows access to the Step/Direction and more Encoder channels and allows a simple plug-and-play setup (with any standard RJ45/Ethernet cable) when used in tandem with a Drive Interface Board (EPx-DIB) for Maxsine AC Servo Drives.
7535 Board: The I/O Termination board (7535P or 7535N) provides additional optically isolated digital I/O. Each board has 16 input terminals and 8 output terminals. All I/O terminals are clearly marked for quick and easy installation.
HiCON-EXTIO[1]: This feature enables Mach4 Sync Outputs (M62/M63). Also control upto 8 analog outputs simultaneously using M67. Useful if you have multiple spindles.
[1] - These items may be purchased any time before or after shipping as they are software features
We are looking for your awesome videos showcasing your machine and our DSPMC controller. Send us videos and get 10% to 20% discount (depends on quality) on your next purchase of any of our motion controller. If you dont plan to purchase, we will refund you as a gift for making the video.
Here are some pointers for creating a good demo video:- This is a good example video a previous customer made for us.
- The video demonstrates a part being created.
- The video specifically shows our controller wired up and operating in a clean well organized panel.
- Lots of camera angles and good editing (high quality editing is not 100% necessary, but the video should at least look somewhat professional)
- Ultimately the amount for the discount (upto 20%) will depend on the quality of the video. A high quality video can receive a high discount, while it may be hard to justify a discount if the video will be difficult to use for marketing.
Price List
| Part # | Description | Price | Add to Order |
|---|---|---|---|
DSPMC Motion Controller |
|||
| 7763S | DSPMC-S(v3) 8-Axis Motion Controller | $1095 | Add to order |
| 7763M | DSPMC(v3) -M 8-Axis Motion Controller with 8 Analog Inputs | $1295 | Add to order |
| 7763D | DSPMC-D 8-Axis Motion Controller For Digital Drives | $895 | Add to order |
Breakout Boards |
|||
| 7535P | 16in/8Out OptoIsolated PNP Sourcing Type I/O Board | $275 | Add to order |
| 7535N | 16in/8Out OptoIsolated NPN Sink Type I/O Board | $275 | Add to order |
| 7711 | Screw Terminal Board w/ Cable | $55 | Add to order |
| 7737 | Differential Step/Dir and Encoder Board | $295 | Add to order |
| 7729 | EtherCAT Adapter Board | $550 | Add to order |
Software |
|||
| MACH4-INDUSTRIAL | Mach4-Industrial Software License | $1295 | Add to order |
| Mach4-Hobby | Mach4-Hobby Software License | $200 | Add to order |
| HiCON-EXTIO | HiCON Extended I/O Feature (Includes Mach4 Sync Outputs M67, M62) Purchase of 7535 I/O board includes this feature! | $275 | Add to order |
| VSI_C_MACRO | DSPMC C Programming Feature | $495 | Add to order |
| MOTION_API | Motion and I/O Control API from Windows PC | $495 | Add to order |
Accessories |
|||
| MPG06ED | MPG06 Unit w/ DB15M + EStop Button + Differential Encoder | $295 | Add to order |
| PW50V24 | Power Supply 24V 2.2A 50W | $40 | Add to order |
