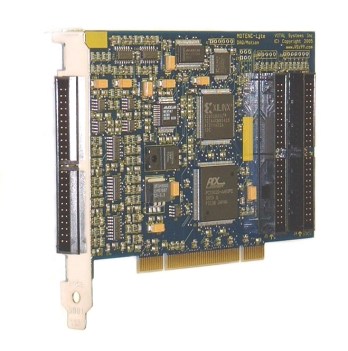

The MOTENC-Lite PCI board is designed for PC based real-time systems controlling machines that require precision motion control. These include, CNC machines, Routers, Pick and Place machines, Robots and so on. The board has all the necessary components to implement a precision digital feed back control system. Analog outputs from the board drive the Motor Amplifiers using industry standard ±10V interface. The position feedback is generated by the quadrature encoder counters using 32-bit resolution. Utilizing the full 32-bit PCI bus, the board allows reading the 32-bit counter in just one read cycle. The Analog output settling time is just under 5 micro-sec and the CPU read-write cycle times are within 500 nano-sec. This allows the PID feedback loop update rate of 20KHz or more. The board has digital I/O to connect home, limit, and other switches and relays to implement a complete control system.

The MOTENC-Lite board is supported on EMC/EMC2 (Enhanced Machine Control) software. EMC is a software system for computer control of machine tools such as milling machines. More info available at www.LinuxCNC.org.

Product Highlights:

  1. Eight Channels Analog Outputs, Range ±10V, 13-Bit Resolution
  2. Eight Channels Analog Inputs, Range ±5Volts, 14-bit Resolution
  3. Four Differential Quadrature Encoder Inputs. 32-Bit Resolution
  4. 2Mhz Max encoder frequency. Encoder resolution is multiplied by 4 in hardware
  5. 48 Digital I/O (32 Inputs & 16 Outputs) in two 50-pin headers. Opto-22 compatible
  6. 10 additional Digital I/O (6 Input,4 Output) on two SIP headers.
  7. Programmable Timer Interrupts
  8. Watch Dog Timer
  9. Optional Hardware ESTOPs Input Signals (Jumpers on board to override if not needed)
  10. Hardware Board ID for multiple board applications
Note: We now offer 7541 version only. 7544 version is now obselete bacause of lack of demand.

Part # Description Price Add to Order
7541 MOTENC-Lite PCI 4-Axis Motion Board (8DAC,8ADC,4ENC,48 Digi IO) $595 Add to order
7544 MOTENC-Lite PCI 4-Axis Board (8DAC, 4ENC, 0ADC, 48 I/O) $495 Add to order
7535P 16in/8Out OptoIsolated PNP Sourcing Type I/O Board $229 Add to order
7535N 16in/8Out OptoIsolated NPN Sink Type I/O Board $229 Add to order
7525 ENC/DAC/ADC Termination Board for MOTENC-Lite $75 Add to order
CB51M Ribbon Cable 1 meter, 50 pin $20 Add to order
