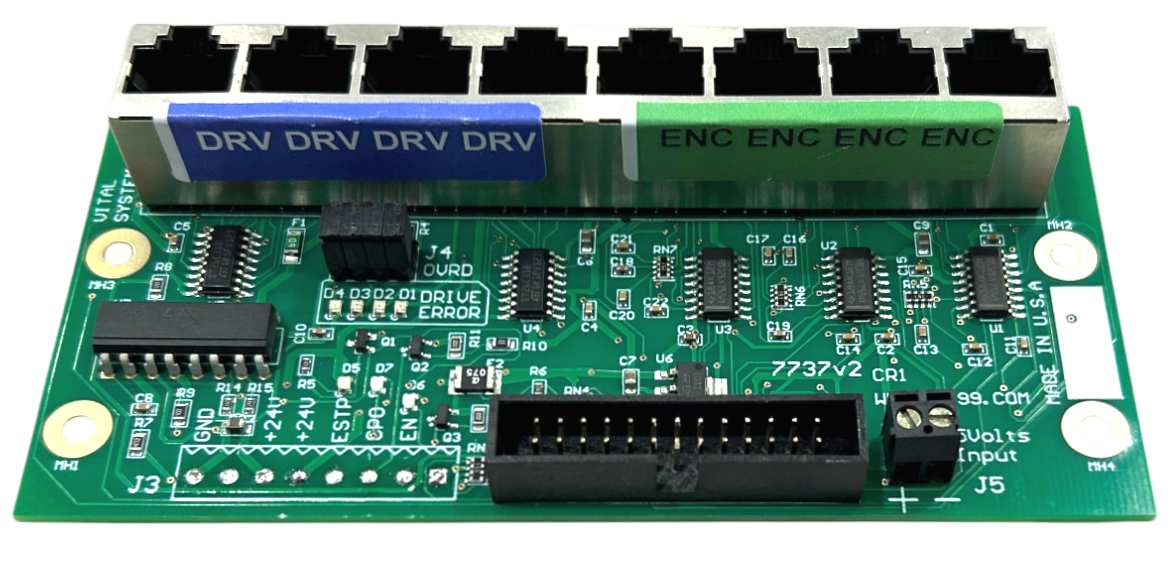

Differential Step/Dir and Encoder Board (pn7737)

The pn7737 Differential Step/Dir and Encoder Board allows access to the Step/Dir channels and more Encoder channels for the HiCON Integra (pn7766) or DSPMC (pnn7762) . When used in tandem with a Drive Interface Board (EPx-DIB), the 7737 allows a simple plug-and-play setup for HiCON Integra (or DSPMC Step/Dir Mode) and Maxsine AC Servo Drives.

  • Color-coded RJ45 plugs for Controller to Drive Step/Dir and Encoder cables.
  • 4 Differential Encoder Channels
  • 4 Step/Dir Output Channels
  • Drive Enable and 1 General Purpose 24V NPN Outputs
  • Hardware Estop and Drive Error Inputs

Connection Diagrams:

Part # Description Price Add to Order
7737 Differential Step/Dir and Encoder Board $295 Add to order

HiCON Breakout Board MB1 (pn 7775)

The 7775 Breakout board provides terminations for I/O, Encoders, Spindle, and Relays for the HiCON CPU.

  • 6 Axis Differential Step/Dir Outputs.
  • 24V Optically Isolated I/O
  • Relays Outputs
  • NPN and PNP I/O
  • DB25F Connector with Encoder and I/O (for MPG etc)
  • Phoenix Style Connectors
  • 5V and 24V Power Supply Input

Connection Diagram: 7775 wiring Details

Part # Description Price Add to Order
7775 HiCON Breakout Board MB1 $350 Add to order

Digital I/O Termination Board (pn 7535P & 7535N)

The I/O Termination board (pn 7535P and 7535N) provides optically isolated digital I/O. Each board has 16 input terminals and 8 output terminals. The board connects directly to the I/O ribbon cable connectors on MOTENC PCI boards as well as DSPMC/IP Ethernet controllers. All I/Os are optically isolated and are clearly marked for quick and easy installation.

  • LEDs for every I/O
  • 2 Amps output current capacity
  • 7535P - PNP I/O (Sourcing)
  • 7535N - NPN I/O (Sinking)
  • Optically Isolated Digital I/O
INPUTS:

16 Inputs, grouped as banks of 4 inputs each, with a total of 4 banks.

Input voltage range of 12 to 30 Volts DC..

OUTPUTS:

8 Outputs, grouped as two banks of 4 outputs each. Output Current Capacity of 2 Amps per output, 10 to 30VDC.

Connection Diagrams:
Part # Description Price Add to Order
7535P 16in/8Out OptoIsolated PNP Sourcing Type I/O Board $229 Add to order
7535N 16in/8Out OptoIsolated NPN Sink Type I/O Board $229 Add to order

DAC/ADC/Encoder Termination Board for MOTENC-Lite (pn7525)

The 7525 Breakout board provides terminations for Encoders, DAC, and ADC for MOTENC-Lite PCI board. The board has 4 Differential Encoder Inputs (A, B, and Index), 8 DAC Analog Outputs and 8 ADC Analog Inputs. The board connects directly to the ENC/DAC/ADC ribbon cable connectors on the MOTENC-Lite PCI board. All signals are clearly marked for quick and easy installation. A jumper setting allows power for the Encoders to be drawn from the PC or from an external source. When using PC power, the encoders are supplied 5V DC @ 1A for all four encoders.

Connection Diagram: 7525 wiring Details

Part # Price Analog inputs Analog Output Differential Encoder Counters Add to Order
P/N 7525 $75 8 8 4 Add to order
