ECS1 - EtherCAT Multi-Function Slave
Overview

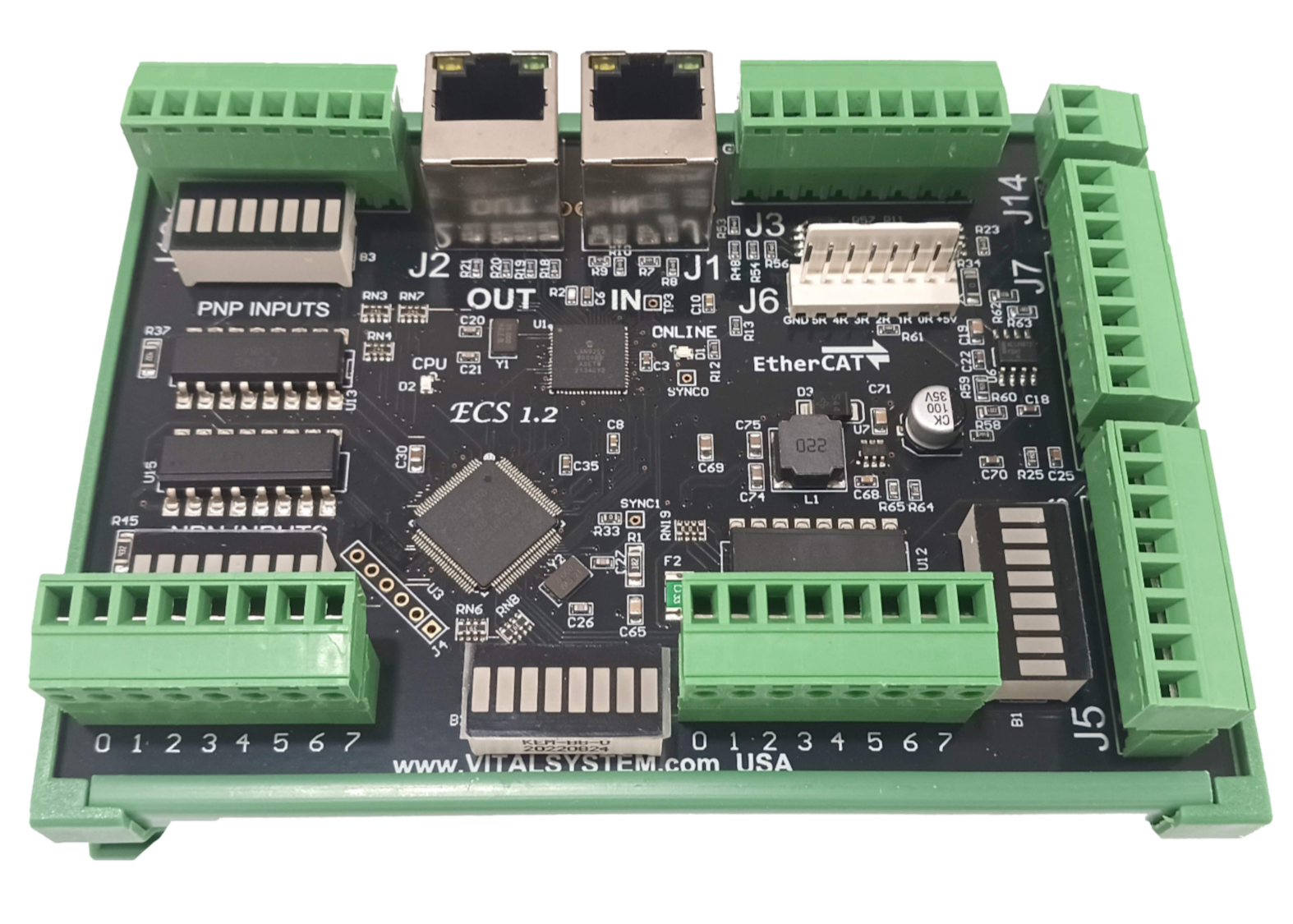

ECS1 is the latest in line of our HiCON EtherCAT Devices. It can be paired with EC01 EtherCAT motion controller. Use cost effective stepper/encoder channels along side EtherCAT Drives. Multifunctions like Analog I/O, Digital I/O, Step/Dir channels, Encoders, Relays on a single EtherCAT module. Our HiCON Mach4 plugin provides feature rich functionality to enable the best experience with Mach4 and Ethercat technologies.
- Cost effective Multi Funciton EtherCAT Module
- Free PC Software 'EC-Link' for easy configuration of Ethercat Slave Devices
- Manuals and video tutorial available to help set it up
In developement and will be available in April 2021. Pre-Orders now open
Features
- 16 Digital Inputs 8 NPN +8 PNP
- 8 Digital Outputs
- 3 Relay N.O. Dry Contacts
- 1 Analog Output 0-10V
- 2 Analog Input 0-5V
- Upto 4 Step/Direction Channels
- Upto 4 Encoder Inputs
- On board Closed Loop for Stepper channels
.png)
EC-Link
EC-Link is our custom designed EtherCAT configuration software. Easily setup and configure EtherCAT networks using a streamlined, reliable, and user-friendly interface.
User Interface
EC-Link offers a feature-rich clean user interface to set up and configure your EtherCAT network.
ESI Files
Import ESI files to make setting up slave devices such as EtherCAT servos a simple task.
Slave Devices
Easily search and add EtherCAT Slave Devices found over the network. Select specific vendors to view slave devices from those vendors.
PDO Editor
Edit both Rx and Tx PDOs to configure communications over your EtherCAT network. Import objects from ESI files or custom design your own for full control.
EC01 Support Files
Optional Components for ECS1 System
Advanced and production applications can also benefit from these add-ons:
ECS-4MTR Activation[1]: This software feature unlocks the use of 4 step/dir channels on the ECS1.
ECS-4ENC Activation[1]: This software feature unlocks the use of 4 encoder inputs on the ECS1.
ECAT-CLOOP Activation[1]: This software feature allows Closed-Loop operation on the EC01. Can be used with ECS1 as well. This feature requires ECS-4ENC on the ECS1
7535 Board: The I/O Termination board (7535P or 7535N) provides additional optically isolated digital I/O. Each board has 16 input terminals and 8 output terminals. All I/O terminals are clearly marked for quick and easy installation.
[1] - These items may be purchased any time before or after shipping as they are software features
Price List
| Part # | Description | Price | Add to Order |
|---|---|---|---|
EtherCAT Modules |
|||
| ECS1 | EtherCAT Multi-Function Slave | $275 | Add to order |
Software and Add-ons |
|||
| ECS-4MTR | ECS1 Step/Direction Activation for 4 motors | $120 | Add to order |
| ECS-4ENC | ECS1 Encoder Activation for 4 motors | $120 | Add to order |
ECAT-CLOOP |
|||
| Mach4-Hobby | Mach4-Hobby Software License | $200 | Add to order |
| MACH4-INDUSTRIAL | Mach4-Industrial Software License | $1295 | Add to order |

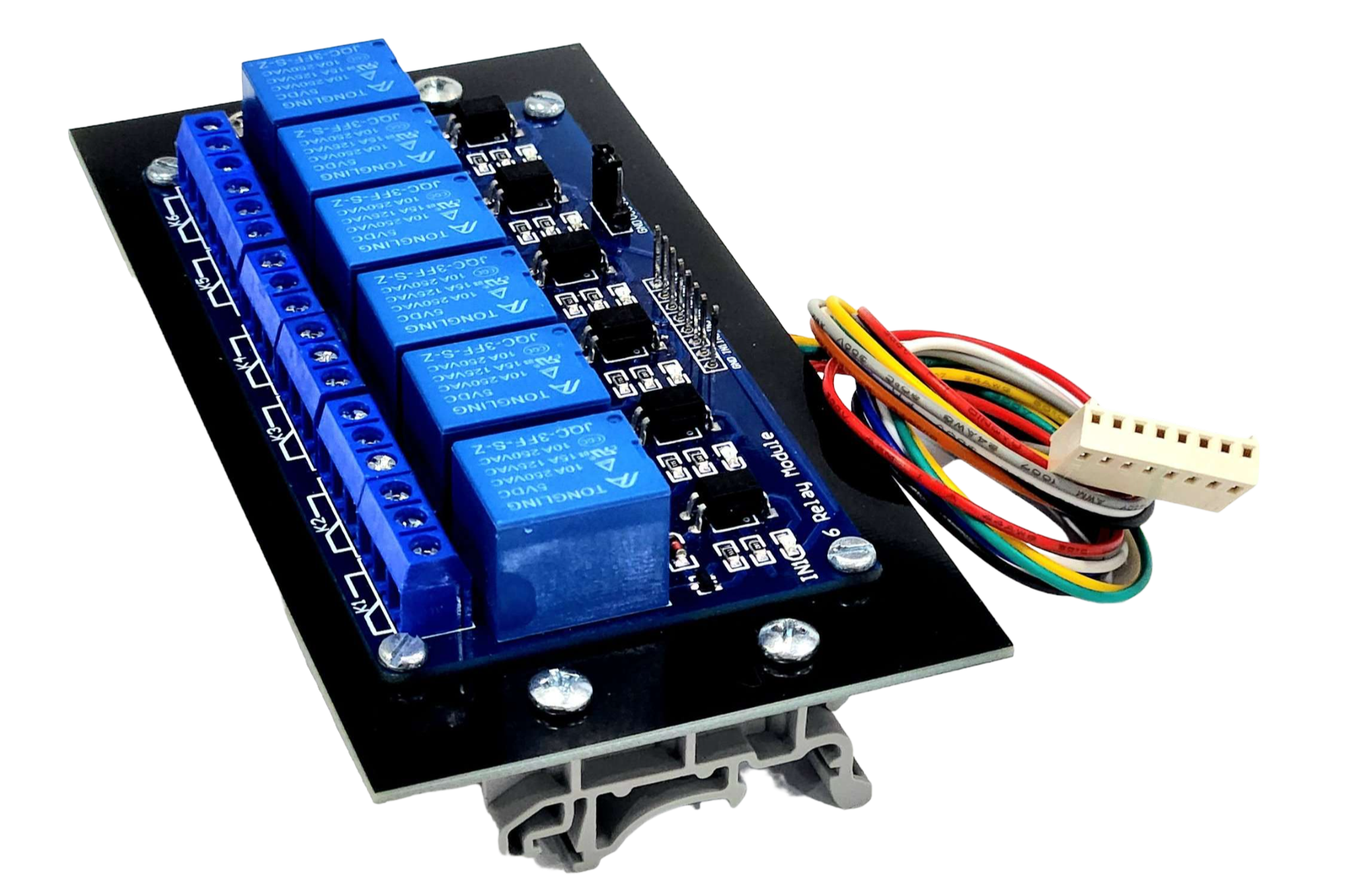

Breakout Boards |
|||
| 7711 | Screw Terminal Board w/ Cable | $55 | Add to order |
| 7535P | 16in/8Out OptoIsolated PNP Sourcing Type I/O Board | $275 | Add to order |
| 7535N | 16in/8Out OptoIsolated NPN Sink Type I/O Board | $275 | Add to order |
Accessories |
|||
| PW50V24 | Power Supply 24V 2.2A 50W | $40 | Add to order |
