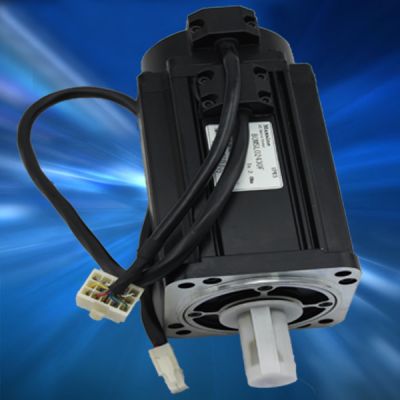

80mm Frame Industrial AC Servo Motor-Drive Sets
Related Links
Need help in choosing the right Motors and Drives for your system?
Please feel free to contact us for assistance
The following are the sets available for the 80mm frame size motor. Each set includes:
- AC Servo Motor
- AC Servo Drive
- 5 meter power cable
- 5 meter encoder cable
Models And Specifications
$645 | $695 | $735 |
|
|---|---|---|---|
| Motor Model | 080MSL01330 | 080MSL02430 | 080MSL03230 |
| Rated Power (kW) | 0.4 | 0.75 | 1.0 |
| Rated Voltage (V) | 220 | 220 | 220 |
| Rated Current (A) | 2.40 | 5.10 | 6.50 |
| Peak Current (A) | 7.20 | 15.30 | 19.50 |
| Rated Speed (RPM) | 3000 | 3000 | 3000 |
| Peak Speed (RPM) | 6000 | 6000 | 6000 |
| Rated Torque (N∙m) | 1.27 | 2.39 | 3.18 |
| Peak Torque (N∙m) | 3.81 | 7.17 | 9.54 |
| Rotor Inertia (x10-4kg∙m2) | 0.068 | 0.113 | 0.113 |
| Motor Weight (kg) (w/brake) | 2.10 (2.70) | 2.90 (3.50) | 2.90 (3.60) |
| Drive Model | TL05F | TL10F | TL10F |
| Input Power | 220VAC (Single/3-Phase) |
220VAC (Single/3-Phase) |
220VAC (Single/3-Phase) |
| Encoder (Pulse/Rev) | 2500 | 2500 | 2500 |
| Motor Insulation Class | ClassB(130°C) |
| Protection Grade | IP65 |
| Operation Temperature | 0~+40°C |
| Operation Humidity | The relative humidity is lower than 90% (No condensation) |
| Brake Voltage | 24 VDC |
| Brake Torque | ≥2.4 N∙m |
| Brake Power | 11.5W |
Line Order of Encoder
| Socket No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lead Definition | PE | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- |

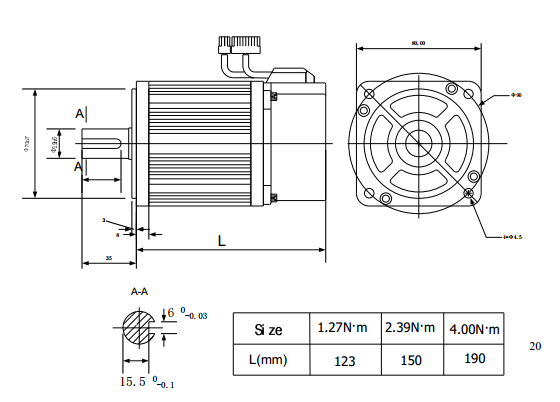

Installation Dimension
