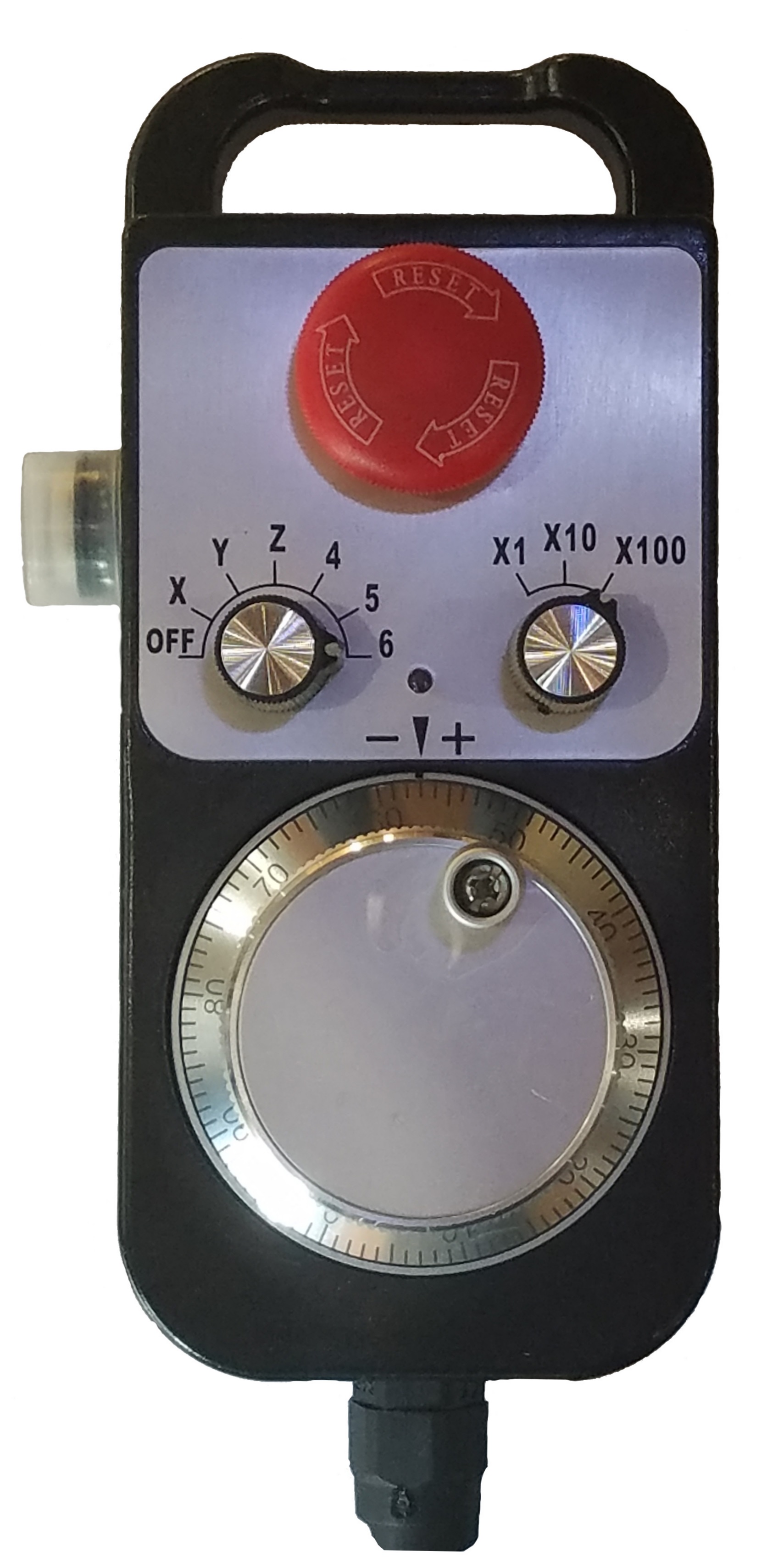

Manual Pulse Generator (pn MPG06)
- General purpose DB15M or DB25M port
- Anti-jamming MPG wheel
- 3m spiral handwheel cable.
- High resolution 100 P/R, accurate pulse output.
- Handwheel holding magnetic function.
- Single-ended or differential encoder output option
| Part # |
Description |
Price |
Add to Order |
| MPG06ED |
MPG06 Unit w/ DB15M + EStop Button + Differential Encoder |
$295 |
Add to order |

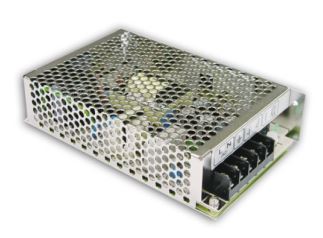

24V Power Supply 50 Watts
| Specifications |
| Output Power |
50W |
| Input Voltage |
88 VAC to 264 VAC |
| Output |
24VDC, 2.2Amp |
| Dimensions |
99 x 82 x 30 mm |
Data Sheet |

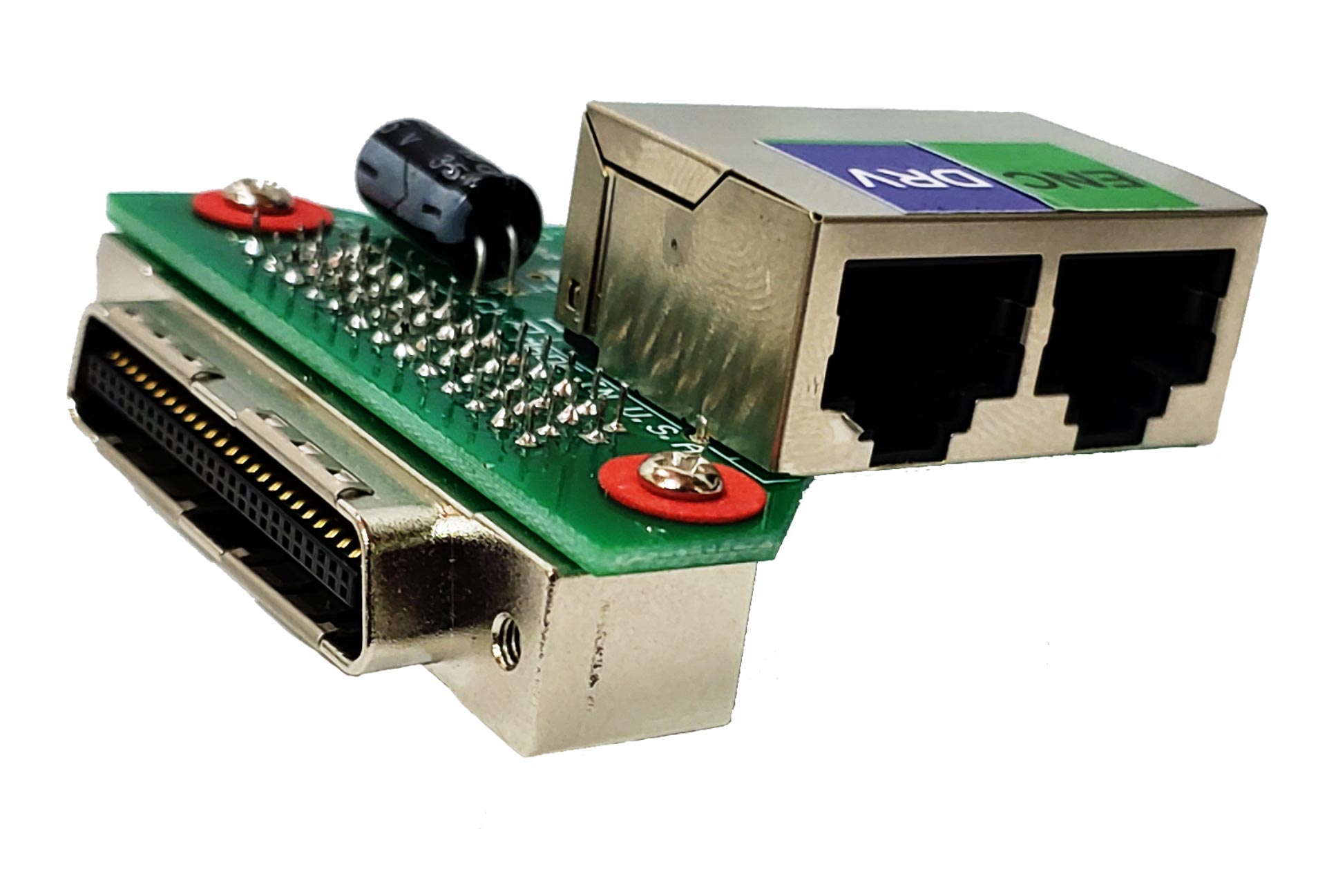

YASKAWA Drive Interface Board
The Drive Interface Board provides a simple plug and play mechanism for YASKAWA Servo Drives and HiCON Integra
when used in tandem with the pn7737 Differential Encoder Board.
| Part # |
Description |
Price |
Add to Order |
| YSK-DIB |
Drive Interface Board for YASKAWA |
$195 |
Add to order |

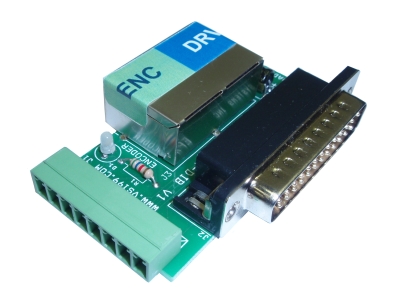

Drive Interface Board (EPx-DIB)
The Drive Interface Board (EPx-DIB) provides a simple plug and play mechanism for Maxsine AC Servo Drives and HiCON Integra
when used in tandem with the pn7737 Differential Encoder Board.
Plasma Tip Voltage Adapter Board
The Plasma Tip Voltage Adapter Board (77ISO) provides a simple plug and play solution for our motion controllers
to read torch tip voltage. This is used for the ArcPRO Plasma Package.
The 77ISO is supported by:
- HiCON Integra
- EC01 EtherCAT Controller
- DSPMC Motion Controller
(Note that the HiCON Mini 77E4AN already has this functionality built-in and does not require this board)
| Part # |
Description |
Price |
Add to Order |
| 77ISO |
Plasma Tip Voltage Adapter Board |
$260 |
Add to order |
