YSK750
Need help in choosing the right Motors and Drives for your system?
Please feel free to contact us for assistance
Listed below are the specifications for the Motor/Drive set. Each set includes:
- AC Servo Motor
- AC Servo Drive
- 5 meter power cable
- 5 meter encoder cable
Specifications
| Motor Model | SGM7J-08AFC6S |
|---|---|
| Rated Power (W) | 750 |
| Rated Line Voltage (V) | 200 |
| Rated Line Current (A) | 4.4 |
| Rated Speed (rpm) | 3000 (6000 max) |
| Rated Torque (N.m) | 2.39 |
| Peak Torque (N.m) | 8.36 |
| Motor Moment of Inertia (kg.m2) | 1.59x10-4 |
| Protection Level | IP67 |
| Operating Environment | Temperature: 0°C ~ 40°C (40°C ~ 60°C with derating) Humidity: Relative Humidity 20% ~ 80% (not including condensing condition) |

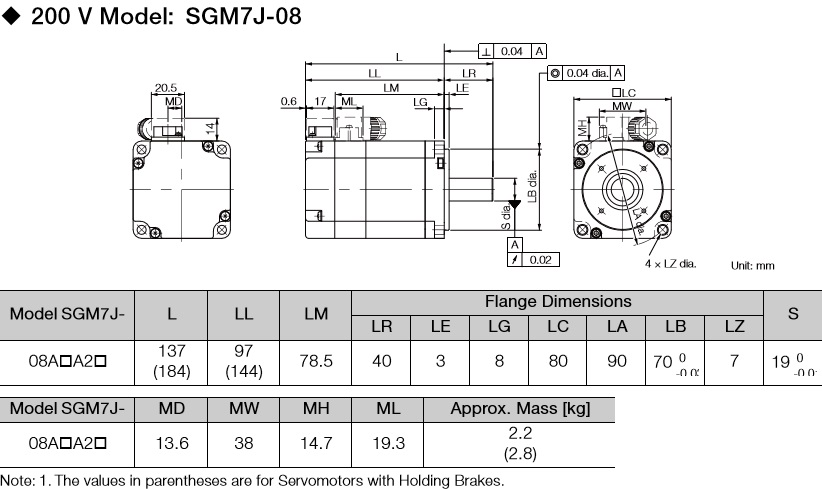

Dimensions
Price List
| YSK750 | $1620 | ||
| YASKAWA Sigma7 750W AC Servo Motor and Drive Set | Add to order | ||
