Frame Sizes: 60mm | 80mm | 110mm | 130mm | 180mm

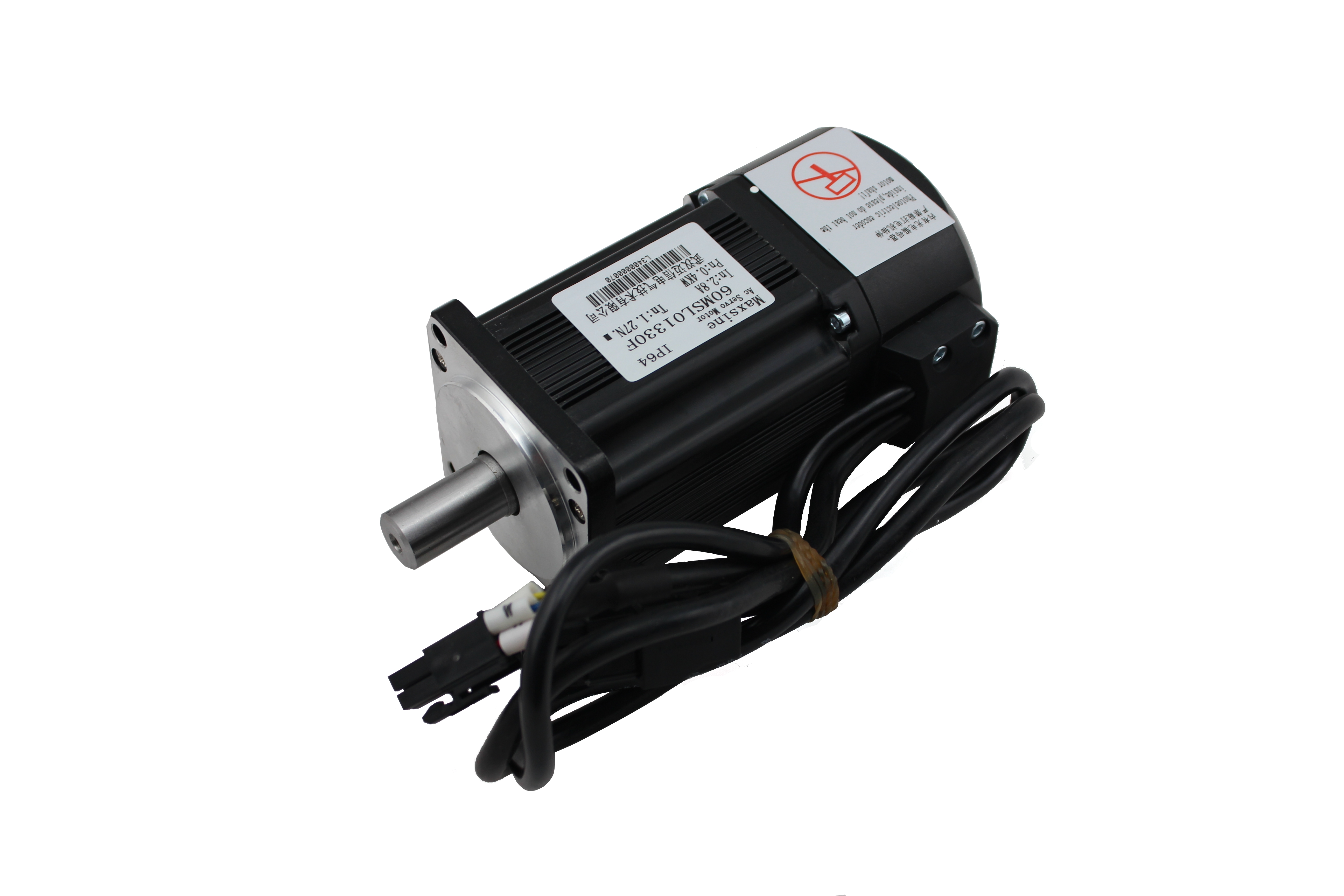

60mm Frame Industrial AC Servo Motor-Drive Sets

Related Links

User Manual

Need help in choosing the right Motors and Drives for your system?

Please feel free to contact us for assistance

The following are the sets available for the 60mm frame size motor. Each set includes:

  • AC Servo Motor
  • AC Servo Drive
  • 5 meter power cable
  • 5 meter encoder cable

Models And Specifications

$650
BUY NOW

$595
BUY NOW

Motor Model 060MSL00630 060MSL01330
Rated Power (kW) 0.2 0.4
Rated Voltage (V) 220 220
Rated Current (A) 1.70 2.70
Peak Current (A) 5.10 8.10
Rated Speed (RPM) 3000 3000
Peak Speed (RPM) 6000 6000
Rated Torque (N∙m) 0.64 1.27
Peak Torque (N∙m) 1.92 3.81
Rotor Inertia (x10-4kg∙m2) 0.017 0.027
Motor Weight (kg) (w/ brake) 1.10 (1.60) 1.60 (2.00)
Drive Model TL05F TL05F
Input Power 220VAC
(Single/3-Phase)
220VAC
(Single/3-Phase)
Encoder (Pulse/Rev) 2500 2500
Motor Insulation Class ClassB(130°C)
Protection Grade IP65
Operation Temperature 0~+40°C
Operation Humidity The relative humidity is lower than 90% (No condensation)
Brake Voltage 24 VDC
Brake Torque ≥1.3 N∙m
Brake Power 7.2W

Line Order of Encoder

Socket No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Lead Definition PE 5V 0V B+ Z- U+ Z+ U- A+ V+ W+ V- A- B- W-

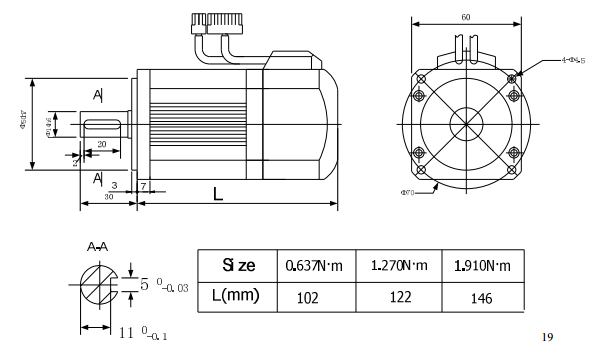

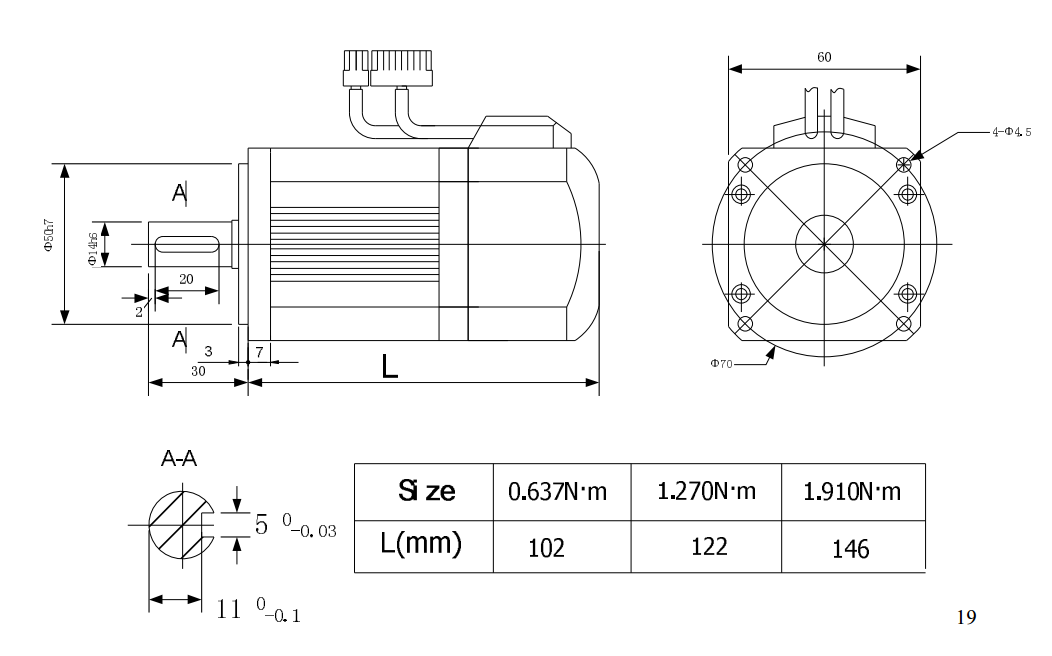

Installation Dimension
