Factory Automation And Controls

Models And Specifications

$650
BUY NOW

$720
BUY NOW

$760
BUY NOW

$720
BUY NOW

$750
BUY NOW

$830
BUY NOW

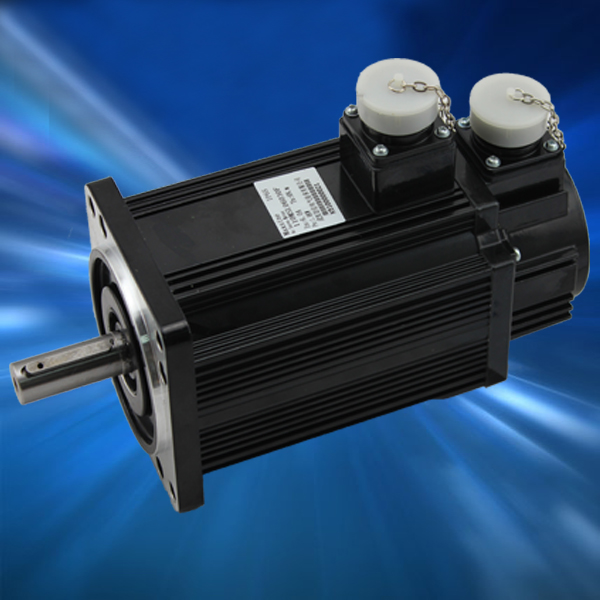

Motor Model 110MSL03225 110MSL04825 110MSL06425 110MAL04030 110MAL05030 110MAL06030
Rated Power (kW) 0.83 1.25 1.67 1.26 1.57 1.88
Rated Voltage (V) 220 220 220 220 220 220
Rated Current (A) 4.50 6.10 8.40 5.30 5.80 6.60
Peak Current (A) 13.50 18.30 25.20 15.90 17.40 19.80
Rated Speed (RPM) 2500 2500 2500 3000 3000 3000
Peak Speed (RPM) 4500 4500 4500 4000 3500 3500
Rated Torque (N∙m) 3.18 4.77 6.37 4.00 5.00 6.00
Peak Torque (N∙m) 9.54 14.31 19.11 12.00 15.00 18.00
Rotor Inertia (x10-4kg∙m2) 0.26 0.37 0.50 0.31 0.43 0.50
Motor Weight (kg) (w/brake) 4.50 (6.20) 5.60 (7.20) 6.70 (8.30) 4.80 (6.60) 6.00 (7.60) 6.70 (8.30)
Drive Model TL10F TL15F TL15F TL15F TL15F TL25F
Input Power 220VAC
(Single/3-Phase)
220VAC
(3-Phase)
220VAC
(3-Phase)
220VAC
(3-Phase)
220VAC
(3-Phase)
220VAC
(3-Phase)
Encoder (Pulse/Rev) 2500 2500 2500 2500 2500 2500
Motor Insulation Class ClassB(130°C)
Protection Grade IP65
Operation Temperature 0~+40°C
Operation Humidity The relative humidity is lower than 90% (No condensation)
Brake Voltage 24 VDC
Brake Torque ≥8.0 N∙m
Brake Power 14.4W

Line Order of Encoder

Socket No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Lead Definition PE 5V 0V B+ Z- U+ Z+ U- A+ V+ W+ V- A- B- W-

Installation Dimension
